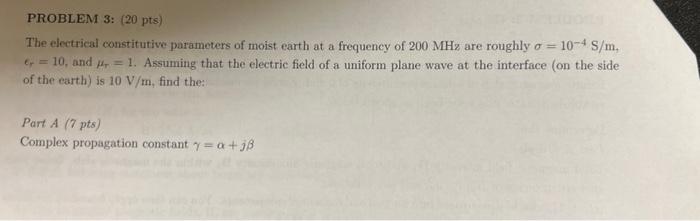

PROBLEM 3: (20 pts) The electrical constitutive parameters of moist earth at a frequency of 200 MHz are roughly o = 10-4 S/m, 6 = 10, and Mr = 1. Assuming that the electric field of a uniform plane wave at the interface (on the side of the earth) is 10 V/m, find the Part A (7 pts) Complex propagation constant y = a +8
Part B (7 pts) Distance through which the wave must travel before the magnitude of the electric field reduces to 0.1 V/m.
Part C (6 pts) Signal wavelength inside the earth (in meters).
