4. (15 points) Reduce the number of states in the Moore-type state machine. Name the reduced states. State Transition Ta
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4. (15 points) Reduce the number of states in the Moore-type state machine. Name the reduced states. State Transition Ta

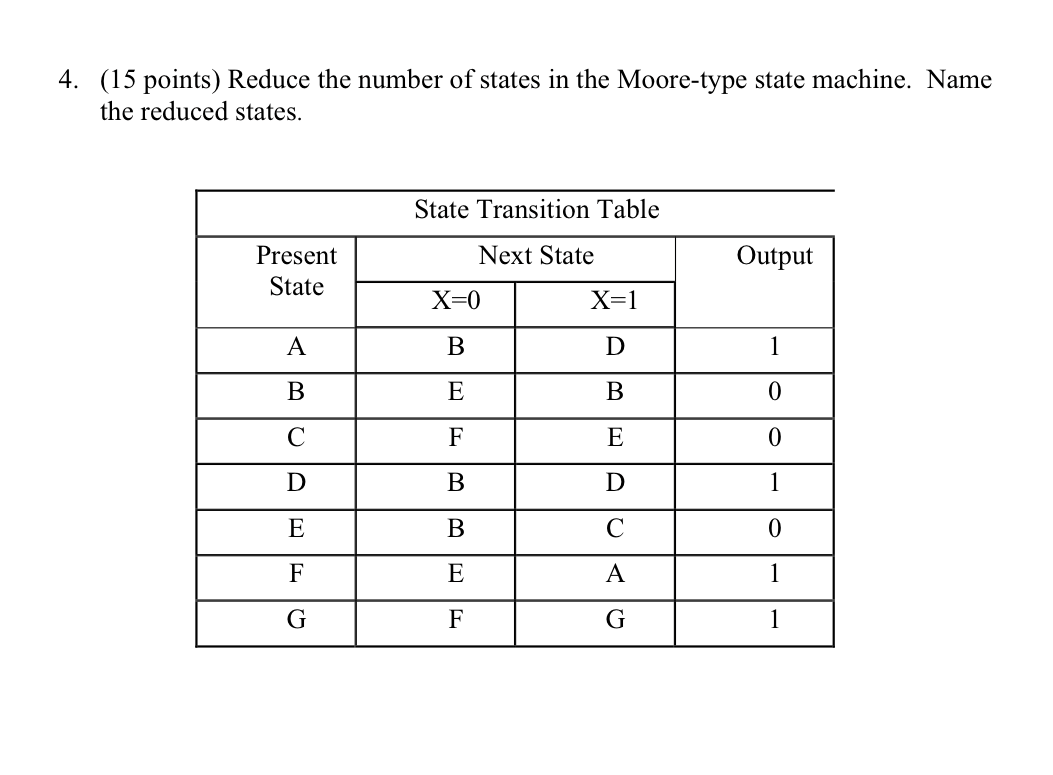

4. (15 points) Reduce the number of states in the Moore-type state machine. Name the reduced states. State Transition Table Next State Present State Output X=0 X=1 A B D 1 B E B 0 с F E 0 D B D 1 E B с 0 F E A 1 G F G 1
