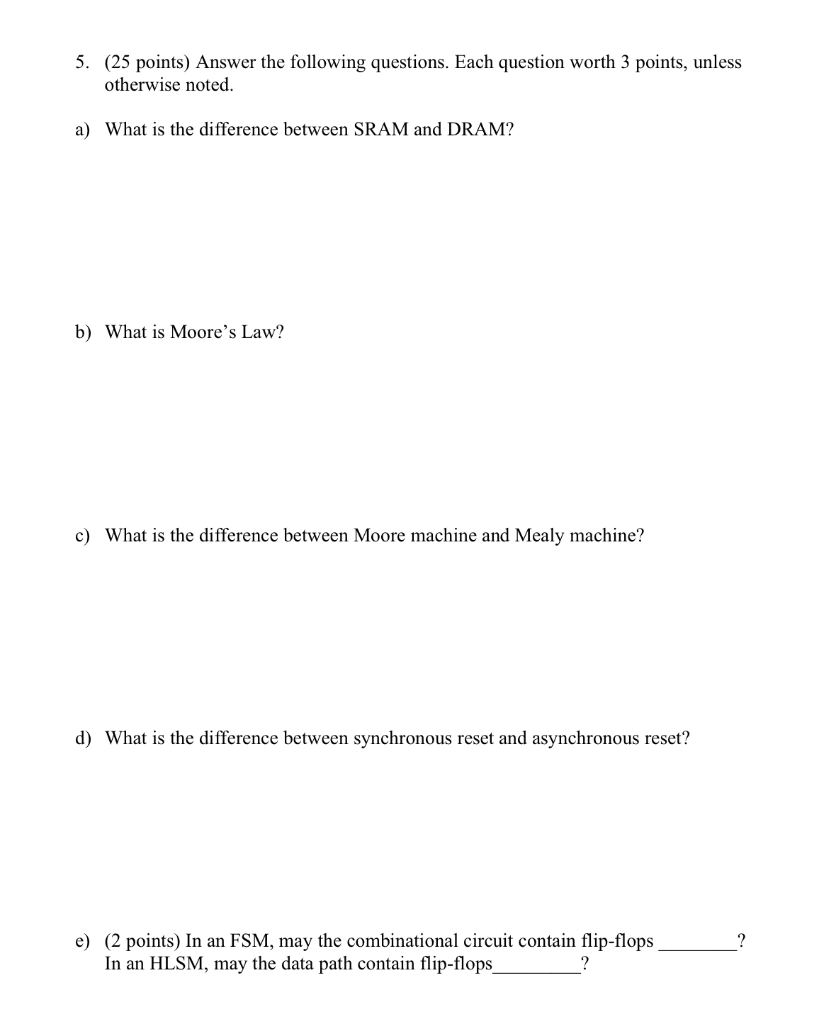

5 25 Points Answer The Following Questions Each Question Worth 3 Points Unless Otherwise Noted A What Is The Diff 1 (65.25 KiB) Viewed 53 times
5. (25 points) Answer the following questions. Each question worth 3 points, unless otherwise noted. a) What is the difference between SRAM and DRAM? b) What is Moore's Law? c) What is the difference between Moore machine and Mealy machine? d) What is the difference between synchronous reset and asynchronous reset? e) (2 points) In an FSM, may the combinational circuit contain flip-flops In an HLSM, may the data path contain flip-flops
f) Give two methods to avoid setup time violation: g) (2 points) Given one method to avoid hold time violation: h) If the three outgoing edges of a state in an FSM are labeled with conditions: A, A'B, B'. Are these conditions exclusive? Are these conditions complete? i) If an 8ns register-to-register path is divided into two parts and a pipeline register is inserted in between, and assume the registers have 2ns setup time. What is the maximum possible throughput we can improve? How much latency can we improve
