3. (10 points) In the following FSR (Feedback Shift Register) circuit, the initial values are: D0=0, D1=0 and D2=1, wher

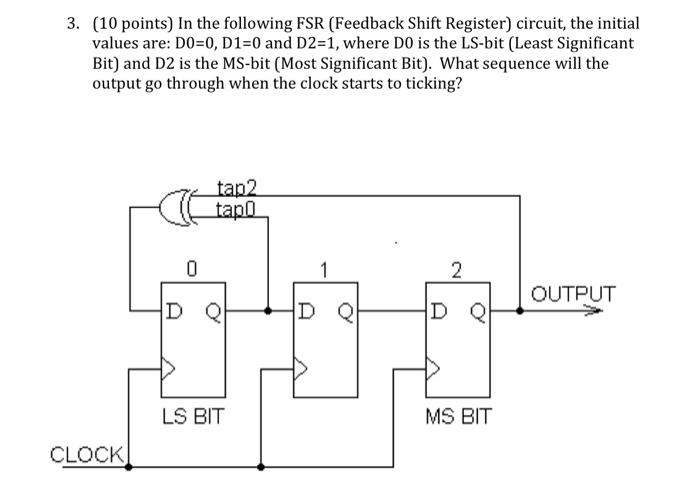

3. (10 points) In the following FSR (Feedback Shift Register) circuit, the initial values are: D0=0, D1=0 and D2=1, where Do is the LS-bit (Least Significant Bit) and D2 is the MS-bit (Most Significant Bit). What sequence will the output go through when the clock starts to ticking? tan2 tapo 0 1 N OUTPUT D D D LS BIT MS BIT CLOCK
