1. For the circuit in Fig. 4, what is the maximum frequency the clock can run without having setup and hold time violati

Post by answerhappygod »

1 For The Circuit In Fig 4 What Is The Maximum Frequency The Clock Can Run Without Having Setup And Hold Time Violati 1
1 For The Circuit In Fig 4 What Is The Maximum Frequency The Clock Can Run Without Having Setup And Hold Time Violati 1 (37.16 KiB) Viewed 38 times

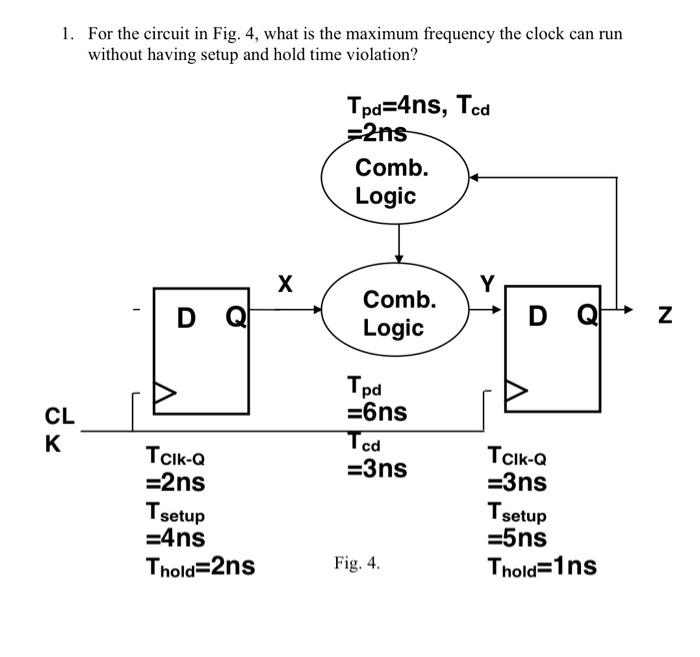

1. For the circuit in Fig. 4, what is the maximum frequency the clock can run without having setup and hold time violation? Tpa=4ns, Ted -2ns Comb. Logic X DQİ Comb. Logic D N Tpa =6ns CL K Tod Tcik-Q =2ns =3ns TCik-Q =3ns T setup T setup =4ns Thold=2ns =5ns Thold=1ns Fig. 4.
