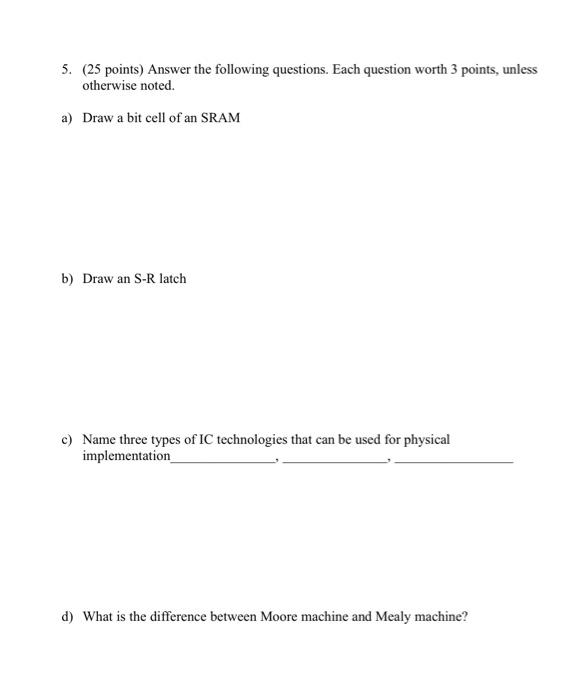

5. (25 points) Answer the following questions. Each question worth 3 points, unless otherwise noted. a) Draw a bit cell of an SRAM b) Draw an S-R latch c) Name three types of IC technologies that can be used for physical implementation d) What is the difference between Moore machine and Mealy machine?

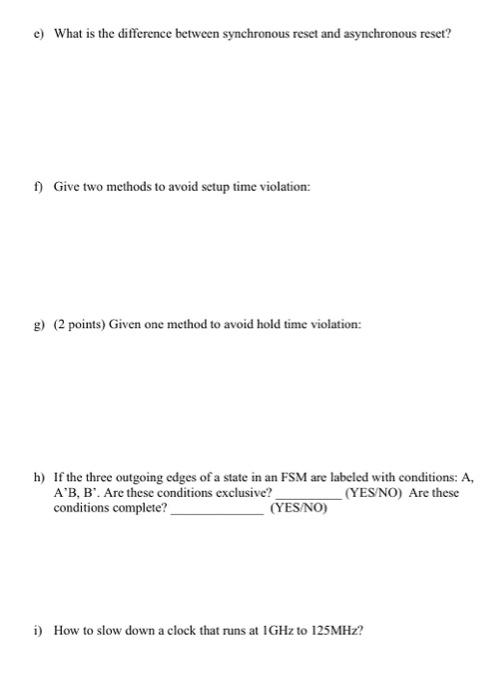

c) What is the difference between synchronous reset and asynchronous reset? 1) Give two methods to avoid setup time violation: g) (2 points) Given one method to avoid hold time violation: h) If the three outgoing edges of a state in an FSM are labeled with conditions: A, A'B, B'. Are these conditions exclusive? (YES/NO) Are these conditions complete? (YES/NO) i) How to slow down a clock that runs at IGHz to 125MHz?
