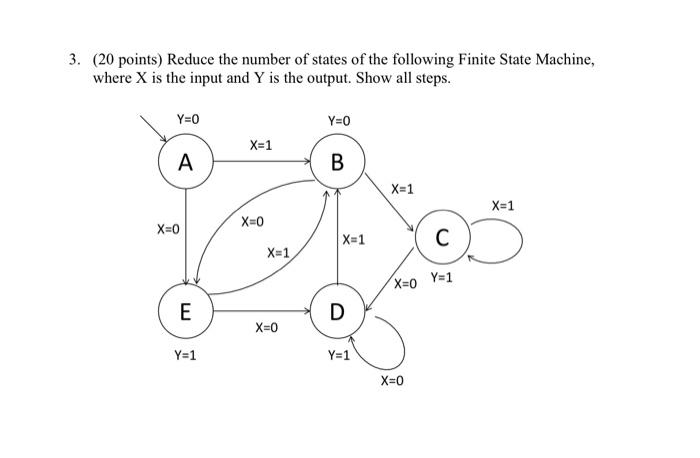

3. (20 points) Reduce the number of states of the following Finite State Machine, where X is the input and Y is the output. Show all steps. Y=0 Y=0 X=1 Α. B X=1 X=1 X=0 X=0 X=1 C X=1 Y=1 X=0 E D X=0 Y=1 Y=1 X=0
