Describe the importance of the choice of sampling period in control system design. Provide one benefit each for the sele

[answerhappygod]

Describe The Importance Of The Choice Of Sampling Period In Control System Design Provide One Benefit Each For The Sele 1 (179.52 KiB) Viewed 43 times

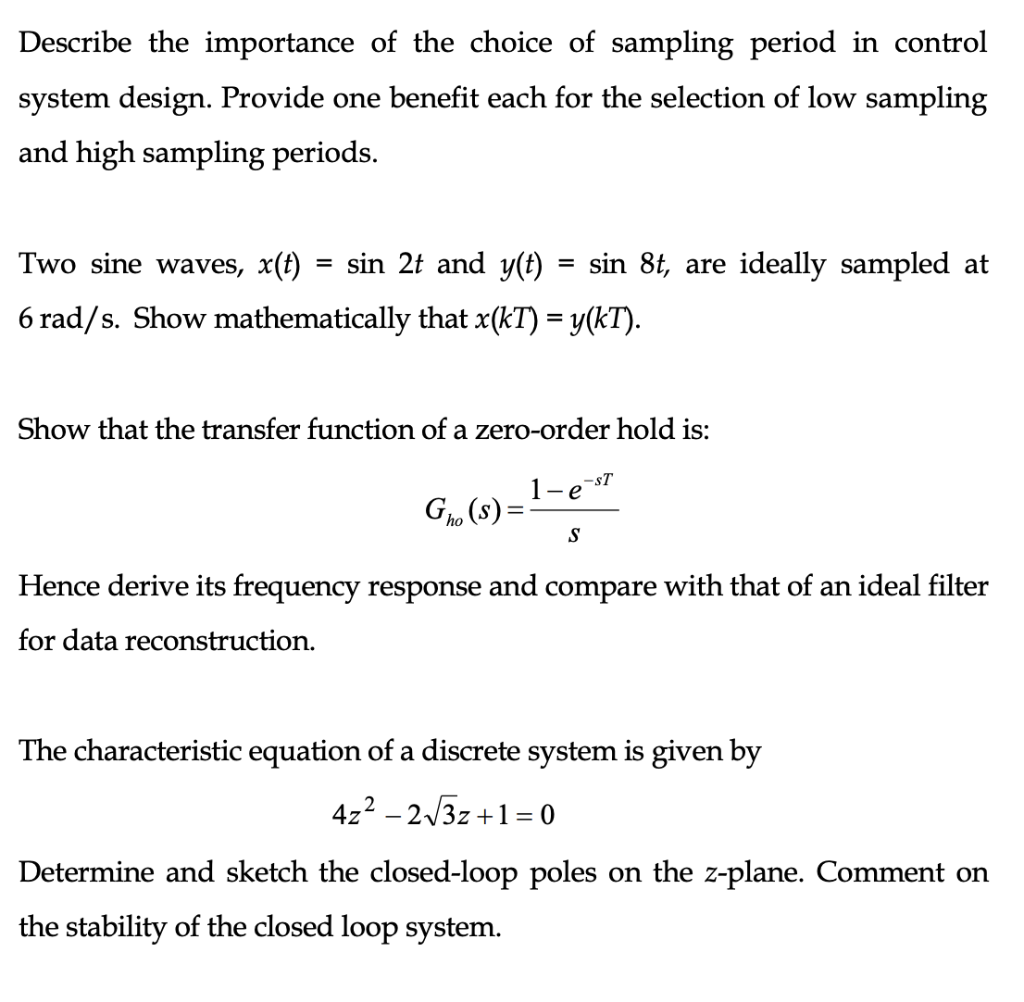

Describe the importance of the choice of sampling period in control system design. Provide one benefit each for the selection of low sampling and high sampling periods. = Two sine waves, x(t) sin 2t and y(t) sin 8t, are ideally sampled at 6 rad/s. Show mathematically that x(kT) = y(kt). = Show that the transfer function of a zero-order hold is: 1-e-sT Go (s) ho S Hence derive its frequency response and compare with that of an ideal filter for data reconstruction. The characteristic equation of a discrete system is given by 422 – 273z +1 = 0 Determine and sketch the closed-loop poles on the z-plane. Comment on the stability of the closed loop system.
