please write and explain clearly, will upvote if correct, thank
you
Please Write And Explain Clearly Will Upvote If Correct Thank You 1 (130.3 KiB) Viewed 26 times
Please Write And Explain Clearly Will Upvote If Correct Thank You 2 (20.47 KiB) Viewed 26 times

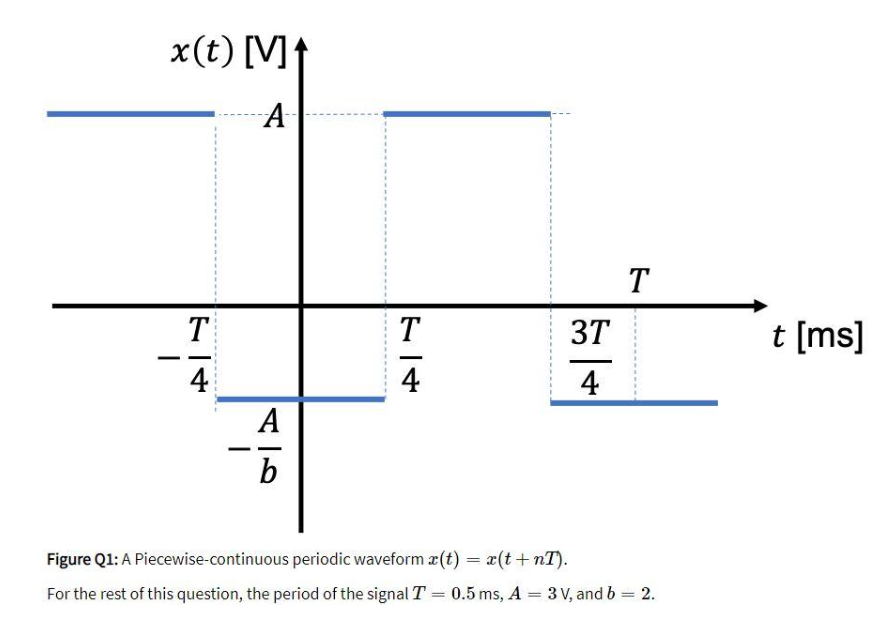

x(t) [V] 1 A T 3T T T 4 t[ms] | 4 4 A b Figure Q1: A Piecewise continuous periodic waveform (t) = x(t+nT). For the rest of this question, the period of the signal T = 0.5 ms, A = 3V, and b = 2.

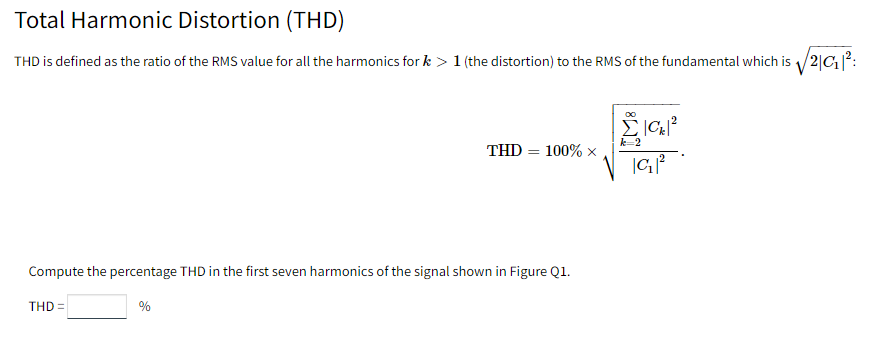

Total Harmonic Distortion (THD) THD is defined as the ratio of the RMS value for all the harmonics for k> 1 (the distortion) to the RMS of the fundamental which is V21G1?: ŽIGH Σ C, C? | le 2 THD = 100% x Compute the percentage THD in the first seven harmonics of the signal shown in Figure Q1. THD = %
