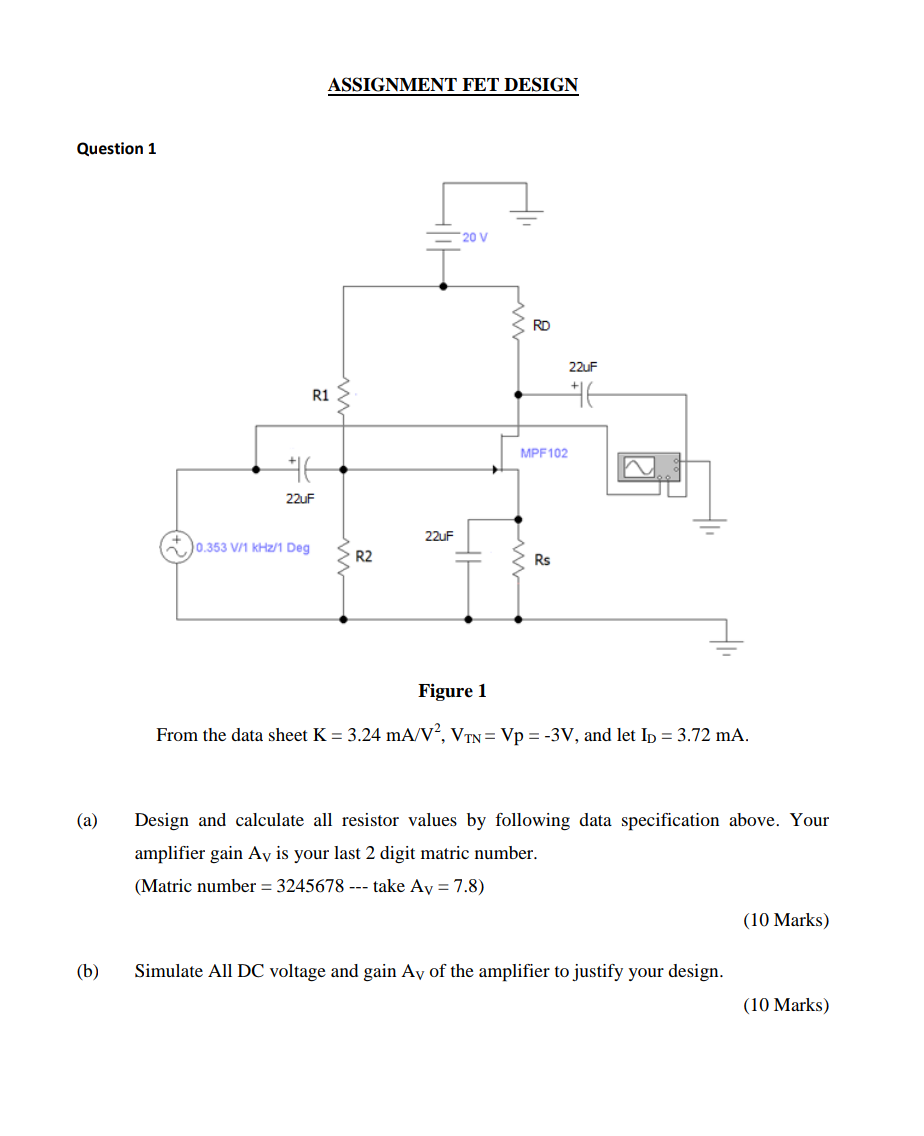

ASSIGNMENT FET DESIGN Question 1 20 V RD 22uF R1 +€ MPF102 开 22UF 22uF 0.353 V/1 kHz/1 Deg R2 Rs Figure 1 From the data
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
ASSIGNMENT FET DESIGN Question 1 20 V RD 22uF R1 +€ MPF102 开 22UF 22uF 0.353 V/1 kHz/1 Deg R2 Rs Figure 1 From the data
ASSIGNMENT FET DESIGN Question 1 20 V RD 22uF R1 +€ MPF102 开 22UF 22uF 0.353 V/1 kHz/1 Deg R2 Rs Figure 1 From the data sheet K = 3.24 mA/V², Vrn= Vp =-3V, and let Ip = 3.72 mA. (a) Design and calculate all resistor values by following data specification above. Your amplifier gain Ay is your last 2 digit matric number. (Matric number = 3245678 --- take Ay = 7.8) (10 Marks) (b) Simulate All DC voltage and gain Ay of the amplifier to justify your design. (10 Marks)
