QUESTION 4 Assume that you have a sensor that outputs a voltage in the range 0-10m. The frequency of the sensor voltage

Post by answerhappygod »

Question 4 Assume That You Have A Sensor That Outputs A Voltage In The Range 0 10m The Frequency Of The Sensor Voltage 1
Question 4 Assume That You Have A Sensor That Outputs A Voltage In The Range 0 10m The Frequency Of The Sensor Voltage 1 (21.4 KiB) Viewed 53 times

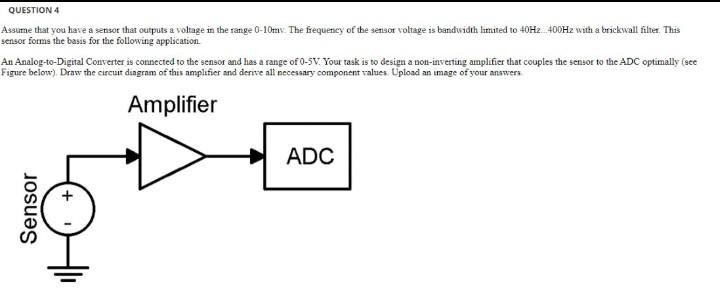

QUESTION 4 Assume that you have a sensor that outputs a voltage in the range 0-10m. The frequency of the sensor voltage is bandwidth limited to 40H2.400Hz with a brickwall filer. This sensor forms the basis for the following application An Analog-to-Digital Converter is connected to the sensor and has a range of 0-5V. Your task is to design a non-inverting amplifier that couples the sensor to the ADC optimally (see Figure below) Draw the circuit diagram of this amplifier and derive all necessary component values. Upload an image of your answers Amplifier ADC + Sensor
