Question 11 (2 points) N.B. The next 10 questions will follow from this question. A 200 V, 50 Hz, 6-pole, Y- connected 3

Post by **answerhappygod** » Sun May 15, 2022 2:55 pm

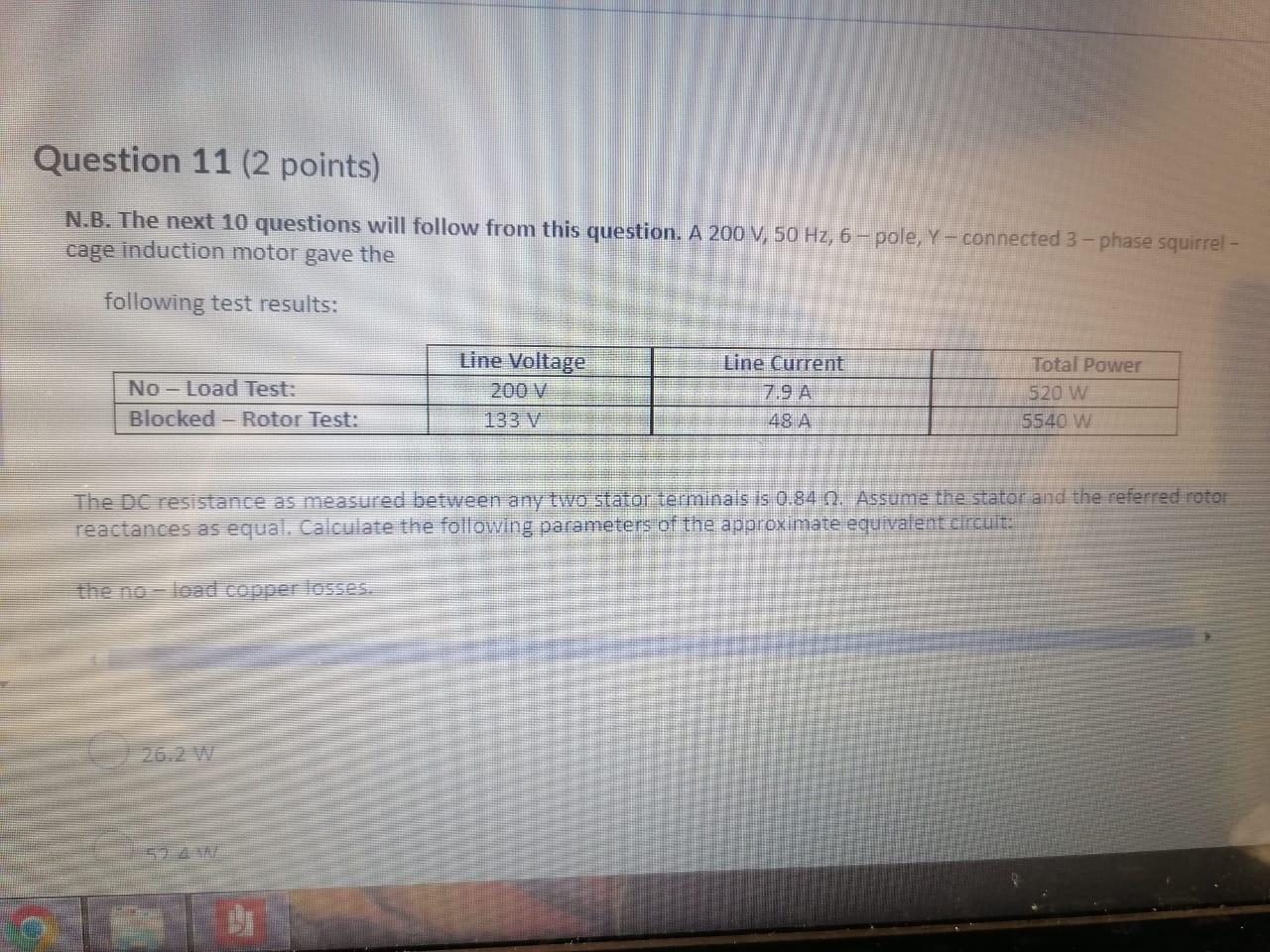

: Question 11 2 Points N B The Next 10 Questions Will Follow From This Question A 200 V 50 Hz 6 Pole Y Connected 3 1 (223.74 KiB) Viewed 37 times

the rotational losses of the motor per phase
the noo-load power factor
the magnetizing and the core loss curreents
the core loss resistance
the magnetizing resistance
the equivalent resistance per phase
the rotor resistance
the equivalent impedance per phase
the equivalent reactance per phase
Question 11 (2 points) N.B. The next 10 questions will follow from this question. A 200 V, 50 Hz, 6-pole, Y- connected 3 - phase squirrel - cage induction motor gave the following test results: No - Load Test: Blocked – Rotor Test: Line Voltage 200 V 133 V Line Current 7.9 A 48 A Total Power 520 W 5540 W The DC resistance as measured between any two stator terminals is 0.840. Assume the stator and the referred rotor reactances as equal. Calculate the following parameters of the approximate equivalent circuit: the no-load copper losses.
