Problem 2 (CLO1) The solar panel shown below produces a voltage that ranges between (22-26V) at 12:00 noon. The same pan

Post by answerhappygod »

Problem 2 Clo1 The Solar Panel Shown Below Produces A Voltage That Ranges Between 22 26v At 12 00 Noon The Same Pan 1
Problem 2 Clo1 The Solar Panel Shown Below Produces A Voltage That Ranges Between 22 26v At 12 00 Noon The Same Pan 1 (36.25 KiB) Viewed 48 times

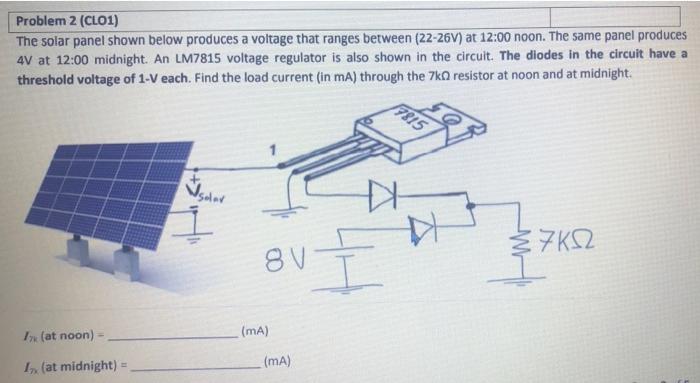

Problem 2 (CLO1) The solar panel shown below produces a voltage that ranges between (22-26V) at 12:00 noon. The same panel produces 4V at 12:00 midnight. An LM7815 voltage regulator is also shown in the circuit. The diodes in the circuit have a threshold voltage of 1-V each. Find the load current (In mA) through the 7kO resistor at noon and at midnight. 7815 Isoler 8V 토 37612 1 (at noon) (MA) 1 (at midnight) (mA)
