N.B. The next 10 questions will follow from this question. A 200 V, 50 Hz, 6-pole, Y-connected 3-phase squirrel - cage i

Post by answerhappygod »

N B The Next 10 Questions Will Follow From This Question A 200 V 50 Hz 6 Pole Y Connected 3 Phase Squirrel Cage I 1
N B The Next 10 Questions Will Follow From This Question A 200 V 50 Hz 6 Pole Y Connected 3 Phase Squirrel Cage I 1 (239.05 KiB) Viewed 56 times
help

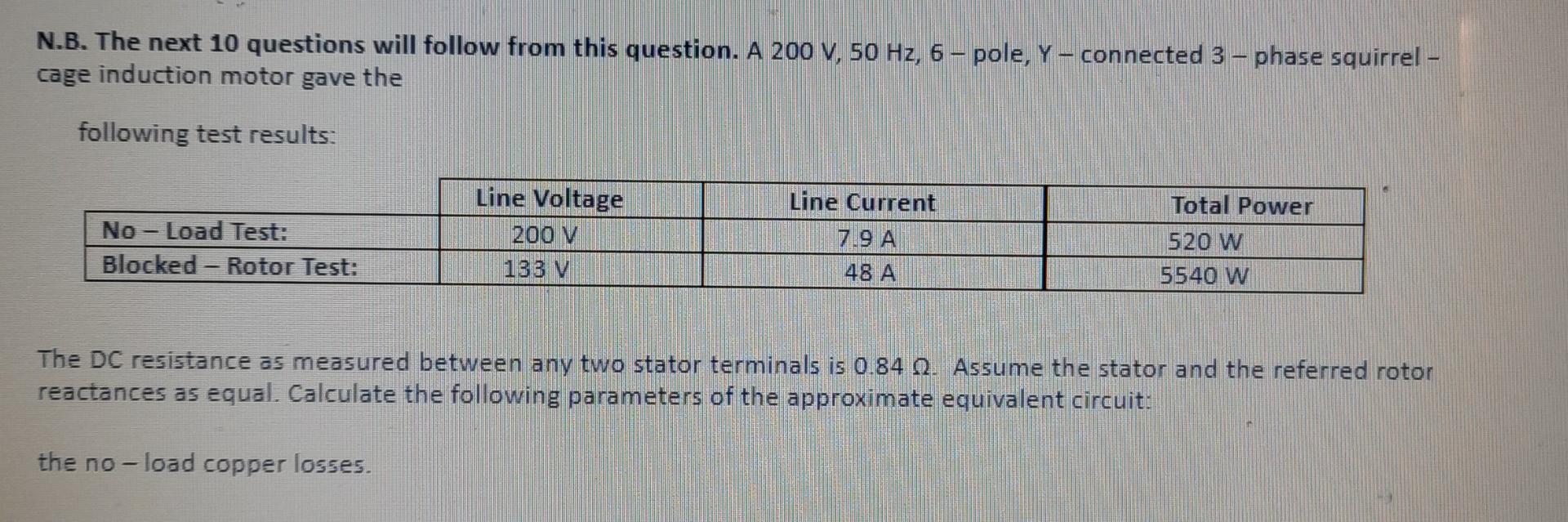

N.B. The next 10 questions will follow from this question. A 200 V, 50 Hz, 6-pole, Y-connected 3-phase squirrel - cage induction motor gave the following test results: Total Power No - Load Test: Blocked - Rotor Test: Line Voltage 200 V 133 V Line Current 7.9 A 48 A 520 W 5540 W The DC resistance as measured between any two stator terminals is 0.84 0. Assume the stator and the referred rotor reactances as equal. Calculate the following parameters of the approximate equivalent circuit: the no-load copper losses.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
