Problem 1 The diode shown in the two circuits below has a threshold voltage of 0.7V. The only difference between the cir

Post by answerhappygod »

Problem 1 The Diode Shown In The Two Circuits Below Has A Threshold Voltage Of 0 7v The Only Difference Between The Cir 1
Problem 1 The Diode Shown In The Two Circuits Below Has A Threshold Voltage Of 0 7v The Only Difference Between The Cir 1 (37.27 KiB) Viewed 42 times

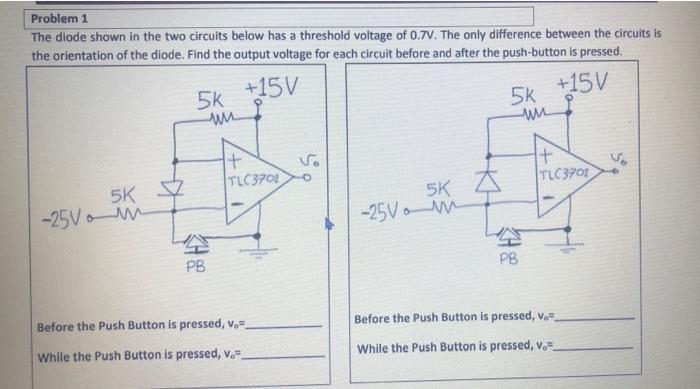

Problem 1 The diode shown in the two circuits below has a threshold voltage of 0.7V. The only difference between the circuits is the orientation of the diode. Find the output voltage for each circuit before and after the push-button is pressed. +15V 5k +15V 5k un w + TLC3701 + TLC3701 -0 A 计 조 5K -25von 5K -25vo in 空 空% PB Before the Push Button is pressed, V. Before the Push Button is pressed, V.-. While the Push Button is pressed, v.- While the Push Button is pressed, V."
