Question: 7
A 4-bit binary weighted digital to analog converter has to be
designed. The supply voltages of the op-amps are Β± 15 V. Choose the
values of the resistors and 𝑽ref so that the
maximum output voltage is no more than 50% of the op-amp supply
voltage. [10]
Question 7 A 4 Bit Binary Weighted Digital To Analog Converter Has To Be Designed The Supply Voltages Of The Op Amps A 1
Question 7 A 4 Bit Binary Weighted Digital To Analog Converter Has To Be Designed The Supply Voltages Of The Op Amps A 1 (52.29 KiB) Viewed 42 times
Use activation voltage π‘½πœΈ(π’…π’Šπ’π’…π’†)= 0.6V, π‘½πœΈ(π’•π’“π’‚π’π’”π’Šπ’”π’•π’π’“)= 0.5V,
𝑽𝑩𝑬 (π’‡π’π’“π’˜π’‚π’“π’… π’‚π’„π’•π’Šπ’—π’†)=𝟎.πŸ•π‘½, 𝑽𝑫=𝟎.πŸ•π‘½ π‘Žπ‘›π‘‘ 𝑽𝑩𝑬(𝒔𝒂𝒕)=𝟎.πŸ– 𝑽 for all the
questions.

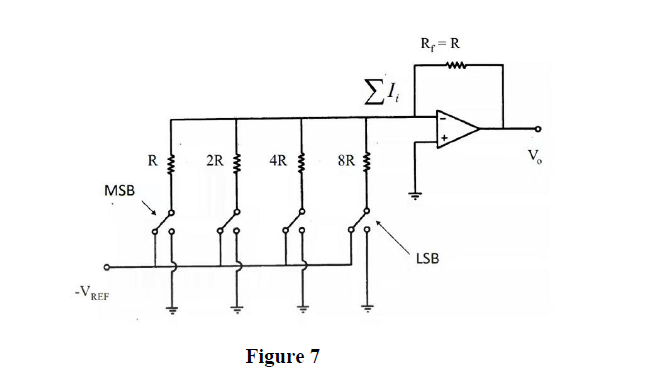

RER w RΕ½ 2R 4R wu 8R MSB LSB VREF Figure 7
