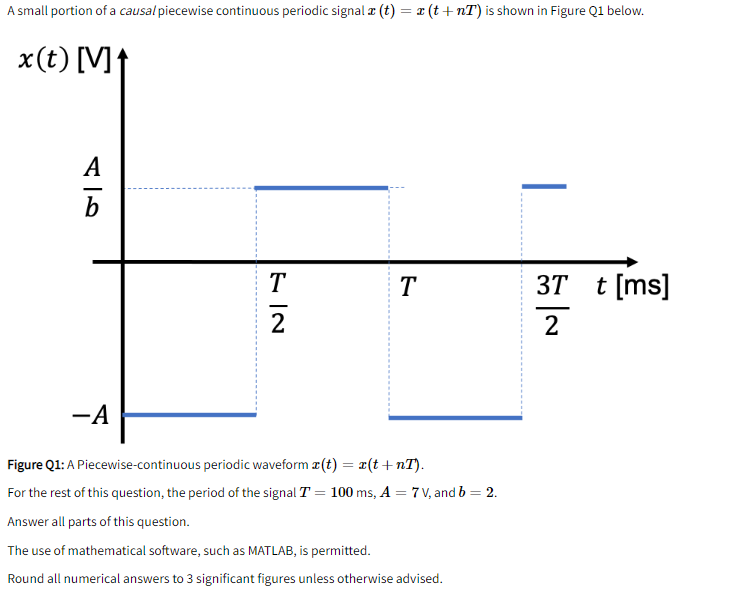

A small portion of a causal piecewise continuous periodic signal (t) = 2(t+nT) is shown in Figure Q1 below. x(t) [V]1 А - 1 b T T ЗТ t[ms] - 2 2 -A = Figure Q1: A Piecewise continuous periodic waveform z(t) = 2(t+nT). For the rest of this question, the period of the signal T = 100 ms, A = 7V, and b = 2. Answer all parts of this question. The use of mathematical software, such as MATLAB, is permitted. Round all numerical answers to 3 significant figures unless otherwise advised.

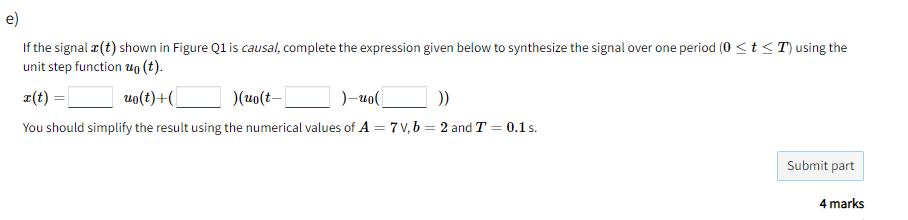

e) If the signal z(t) shown in Figure Q1 is causal, complete the expression given below to synthesize the signal over one period (0 <t <T) using the unit step function wo (t). 2(t) = uo(t)+( )(u)(t- D-ul )) You should simplify the result using the numerical values of A = 71, b = 2 and T = 0.1s. Submit part 4 marks
