d) A 3-phase system has conductors arranged symmetrically as shown below: D a The symmetrically spaced three-phase 11 kV

Post by answerhappygod »

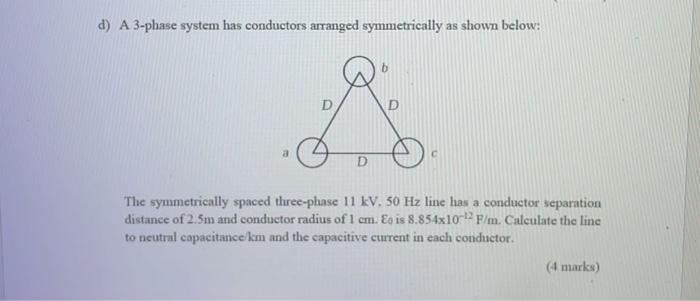

D A 3 Phase System Has Conductors Arranged Symmetrically As Shown Below D A The Symmetrically Spaced Three Phase 11 Kv 1
D A 3 Phase System Has Conductors Arranged Symmetrically As Shown Below D A The Symmetrically Spaced Three Phase 11 Kv 1 (22.17 KiB) Viewed 56 times
d) A 3-phase system has conductors arranged symmetrically as shown below: D a The symmetrically spaced three-phase 11 kV. 30 Hz line has a conductor separation distance of 2.5m and conductor radius of 1 cm. En is 8.854x10-F/m. Calculate the line to neutral capacitance lem and the capacitive current in cach conductor. (4 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
