1) Construct the circuit shown below, measure all the unknown parameters in the table. Unknown Magnitude Time shift Phas

Post by answerhappygod »

1 Construct The Circuit Shown Below Measure All The Unknown Parameters In The Table Unknown Magnitude Time Shift Phas 1
1 Construct The Circuit Shown Below Measure All The Unknown Parameters In The Table Unknown Magnitude Time Shift Phas 1 (233.21 KiB) Viewed 37 times

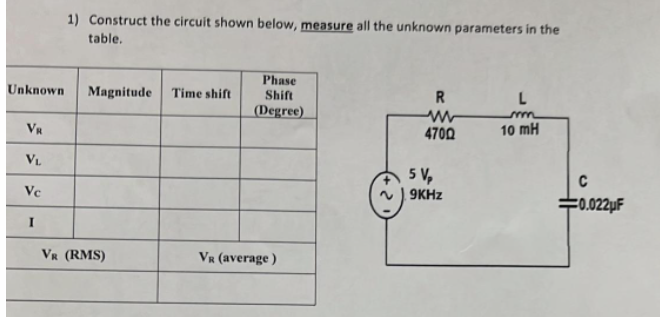

1) Construct the circuit shown below, measure all the unknown parameters in the table. Unknown Magnitude Time shift Phase Shift (Degree) R L VA 4700 10 mH VL 5 V, Vc 9KHz с = 0.022uF I VR (RMS) Vr (average )
