c) A 35 KVA, 415/240 V, 50 Hz single-phase transformer has the following parameters: R1 = 0.162 R2 = 0.08522 Rc = 24092

Post by answerhappygod »

C A 35 Kva 415 240 V 50 Hz Single Phase Transformer Has The Following Parameters R1 0 162 R2 0 08522 Rc 24092 1

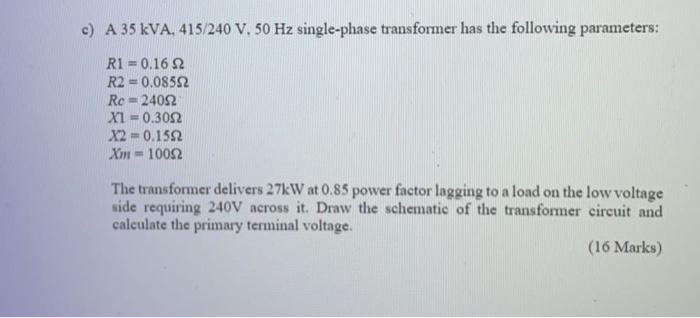

C A 35 Kva 415 240 V 50 Hz Single Phase Transformer Has The Following Parameters R1 0 162 R2 0 08522 Rc 24092 1 (23.43 KiB) Viewed 40 times
c) A 35 KVA, 415/240 V, 50 Hz single-phase transformer has the following parameters: R1 = 0.162 R2 = 0.08522 Rc = 24092 X1 = 0.3092 X2 -0.1592 Xm - 10092 The transformer delivers 271W at 0.85 power factor lagging to a load on the low voltage side requiring 240V across it. Draw the schematic of the transformer circuit and calculate the primary terminal voltage. (16 Marks)
