Consider the series RLC circuit shown in Figure Q.B4 50) Find the magnitude of the supply current and phase shift with r

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Consider the series RLC circuit shown in Figure Q.B4 50) Find the magnitude of the supply current and phase shift with r

Post by answerhappygod »

Consider The Series Rlc Circuit Shown In Figure Q B4 50 Find The Magnitude Of The Supply Current And Phase Shift With R 1
Consider The Series Rlc Circuit Shown In Figure Q B4 50 Find The Magnitude Of The Supply Current And Phase Shift With R 1 (377.81 KiB) Viewed 63 times

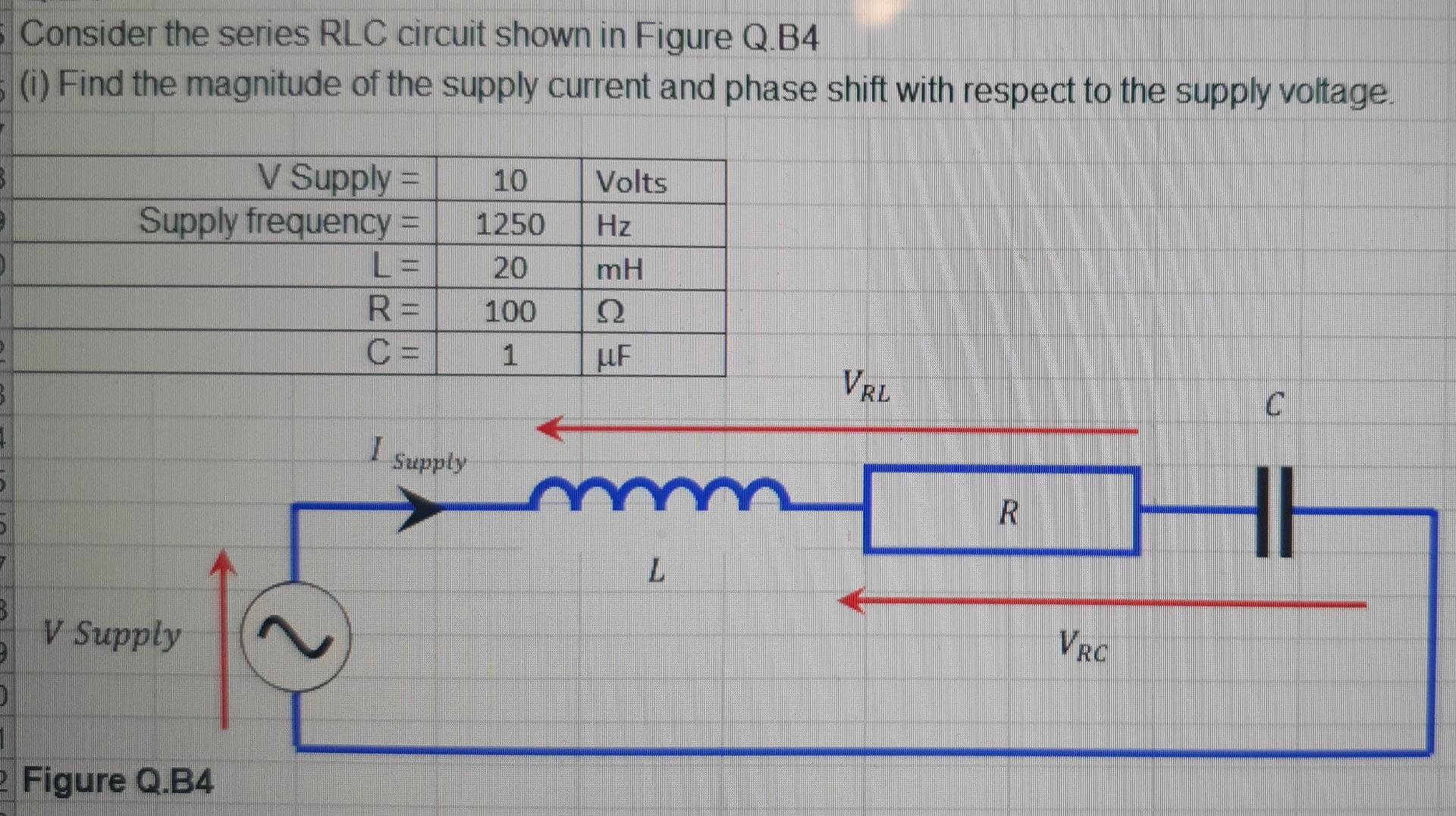

Consider the series RLC circuit shown in Figure Q.B4 50) Find the magnitude of the supply current and phase shift with respect to the supply voltage. 10 Volts 1250 Hz V Supply = Supply frequency = L- R = C= 20 mH O 100 1 UF VRL C I Supply R L V Supply VRC 2 Figure Q.B4
