Determine the value of the capacitance in the figure below that must be connected in parallel with the single-phase load

Post by answerhappygod »

Determine The Value Of The Capacitance In The Figure Below That Must Be Connected In Parallel With The Single Phase Load 1
Determine The Value Of The Capacitance In The Figure Below That Must Be Connected In Parallel With The Single Phase Load 1 (24.64 KiB) Viewed 97 times

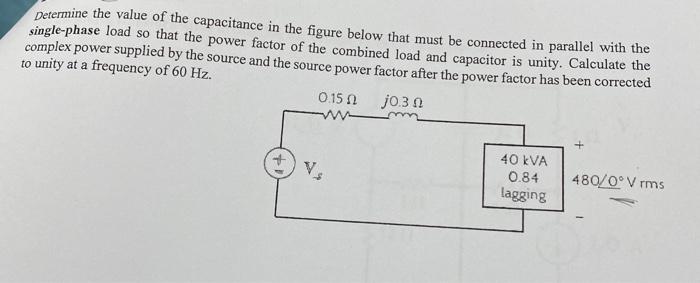

Determine the value of the capacitance in the figure below that must be connected in parallel with the single-phase load so that the power factor of the combined load and capacitor is unity. Calculate the complex power supplied by the source and the source power factor after the power factor has been corrected to unity at a frequency of 60 Hz. 0.152 j0.3 V 40 kVA 0.84 lagging 480/0°Vrms
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
