Q2: Draw your datapath for a load and store type of instructions and name wire lines like Q1,Q2..... Write down, each of

[answerhappygod]

Q2 Draw Your Datapath For A Load And Store Type Of Instructions And Name Wire Lines Like Q1 Q2 Write Down Each Of 1 (8.64 KiB) Viewed 55 times

X3- 10
X4- 12
X6- 4

Q2 Draw Your Datapath For A Load And Store Type Of Instructions And Name Wire Lines Like Q1 Q2 Write Down Each Of 2 (73.15 KiB) Viewed 55 times

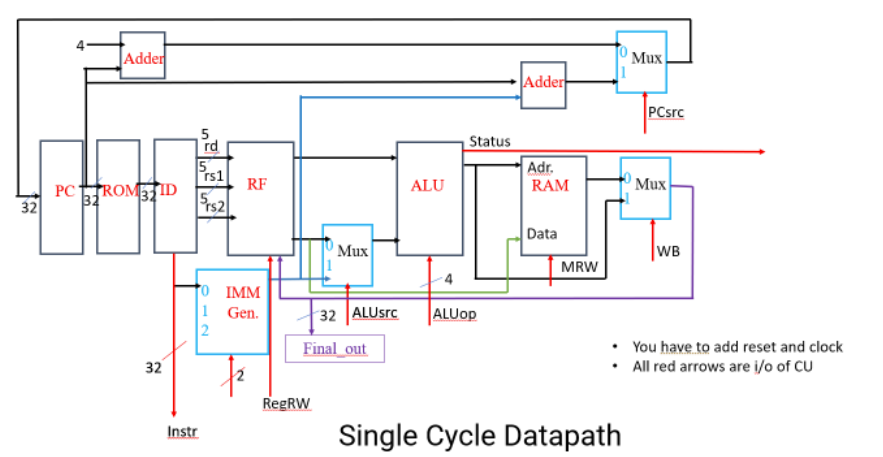

Q2: Draw your datapath for a load and store type of instructions and name wire lines like Q1,Q2..... Write down, each of the wire lines value for the following instructions. (32 points) 6c: Sw x5, 12(x6) 70: lw x7, 12(x6)

Adder Mux Adder PCsrc Status 5 rd 5 r51 rs2 PC TROMBLID RF Adr. RAM ALU Mux 32 Data Mux WB MRW O IMM 1 Gen. 32 ALUSC ALUop 2 Final out You have to add reset and clock • All red arrows are i/o of CU 32 RegRW Instr Single Cycle Datapath
