- A Draw A Waveform Of Output Q From A Sr Latch When S And R Are Given As Follows Q Is Initially Zero S R Q B Draw A 1 (322.96 KiB) Viewed 87 times
(a) Draw a waveform of output Q from a SR latch when S and R are given as follows. Q is initially zero. S R Q (b) Draw a
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(a) Draw a waveform of output Q from a SR latch when S and R are given as follows. Q is initially zero. S R Q (b) Draw a

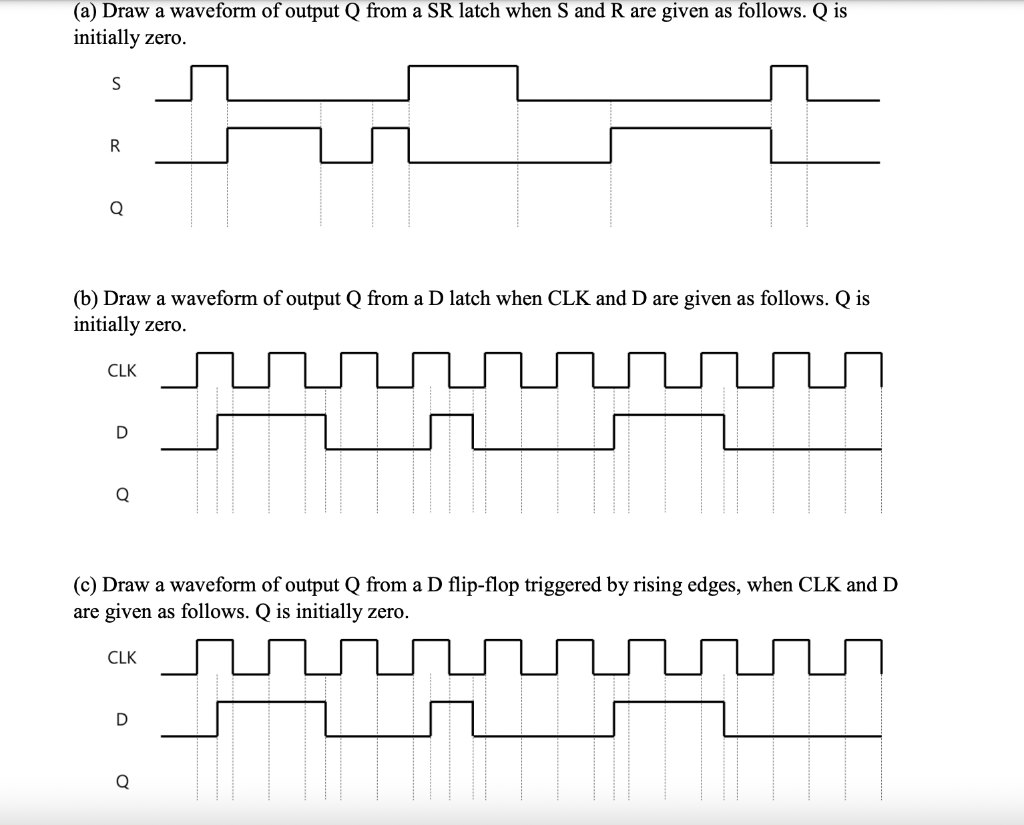

(a) Draw a waveform of output Q from a SR latch when S and R are given as follows. Q is initially zero. S R Q (b) Draw a waveform of output Q from a D latch when CLK and D are given as follows. Q is initially zero. CLK H D Q (c) Draw a waveform of output Q from a D flip-flop triggered by rising edges, when CLK and D are given as follows. Q is initially zero. CLK D Q
