Question C) Draw a schematic of the designed FSM.
Question a and b have already been solved here on answers and the
answer to question b is
S2+ = S0'A + S2'S1'A
S1+ = S0A' + S1S0 + S2S0 + S1S0'A'
S0+ = S2'S0'A' + S2S0'A + S1S0A + S2S0A'
Y = A + S1S0'
Question C Draw A Schematic Of The Designed Fsm Question A And B Have Already Been Solved Here On Chegg And The Answer 1 (93.13 KiB) Viewed 40 times

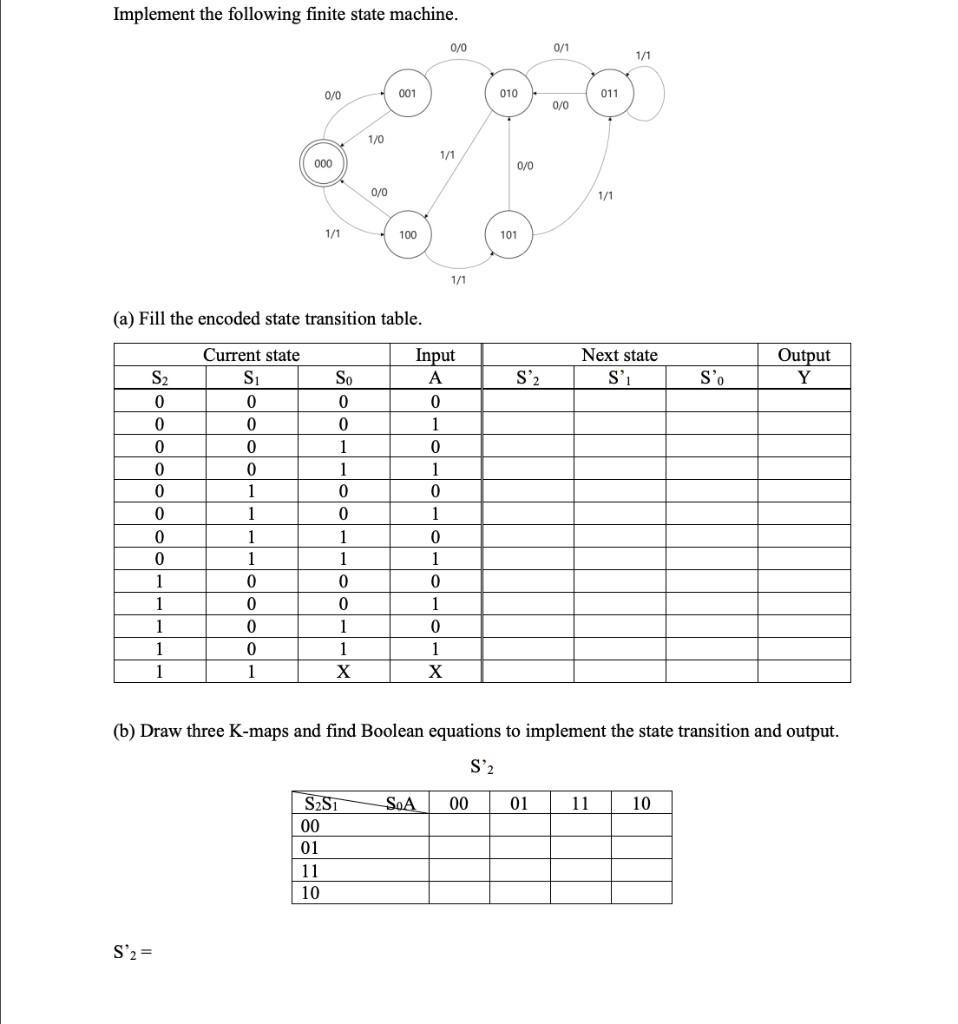

Implement the following finite state machine. 0/0 0/1 1/1 0/0 001 010 011 0/0 1/0 1/1 000 0/0 0/0 1/1 1/1 100 101 1/1 (a) Fill the encoded state transition table. Next state S' Output Y S'2 S'o S2 0 0 0 0 0 0 0 Current state Si 0 0 0 0 1 1 1 1 0 0 0 0 1 So 0 0 1 1 0 0 1 1 0 0 1 1 X Input A 0 1 0 1 0 1 0 1 0 1 0 1 X 0 1 1 1 1 1 (b) Draw three K-maps and find Boolean equations to implement the state transition and output. S'2 SOA 00 01 11 10 S2S1 00 01 11 10 S'2=
