The following is a SM state diagram representing a sequence detector, with "A" being the reset (start) state (X/Z repres

Post by answerhappygod »

The Following Is A Sm State Diagram Representing A Sequence Detector With A Being The Reset Start State X Z Repres 1
The Following Is A Sm State Diagram Representing A Sequence Detector With A Being The Reset Start State X Z Repres 1 (47.5 KiB) Viewed 32 times

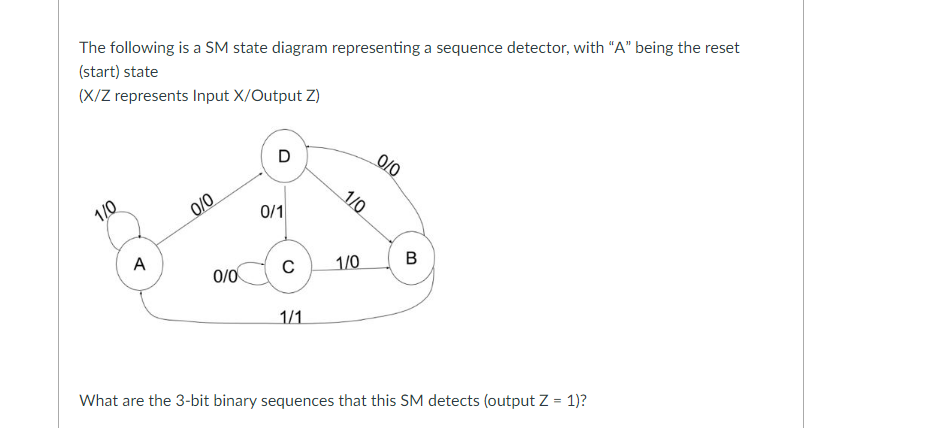

The following is a SM state diagram representing a sequence detector, with "A" being the reset (start) state (X/Z represents Input X/Output Z) D 0/0 1/0 170 0/0 0/1 A С 1/0 B 0/0 1/1 What are the 3-bit binary sequences that this SM detects (output Z = 1)?
