ECE2411 Logic Circuits 11 5(a) (6 pts) Below circuit consists of three gates connected as in the following diagram: Spri

Post by answerhappygod »

Ece2411 Logic Circuits 11 5 A 6 Pts Below Circuit Consists Of Three Gates Connected As In The Following Diagram Spri 1
Ece2411 Logic Circuits 11 5 A 6 Pts Below Circuit Consists Of Three Gates Connected As In The Following Diagram Spri 1 (47.95 KiB) Viewed 24 times

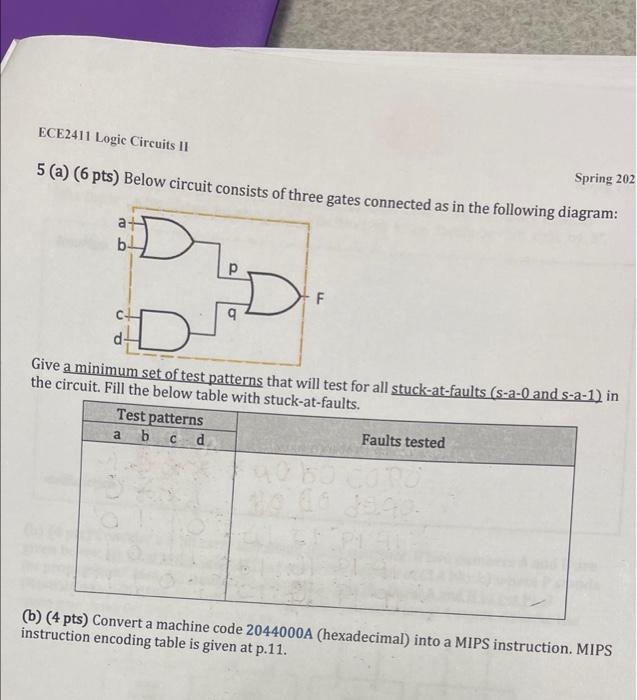

ECE2411 Logic Circuits 11 5(a) (6 pts) Below circuit consists of three gates connected as in the following diagram: Spring 202 ан b- F D Give a minimum set of test patterns that will test for all stuck-at-faults (s-a-0 and s-a-1) in the circuit. Fill the below table with stuck-at-faults. Test patterns Faults tested a b cd (b) (4 pts) Convert a machine code 2044000A (hexadecimal) into a MIPS instruction. MIPS instruction encoding table is given at p.11.
