C A beam with a length L is attached to the wall with a cable as shown. A load W = 500 lb is attached to the beam. The t

Post by answerhappygod »

C A Beam With A Length L Is Attached To The Wall With A Cable As Shown A Load W 500 Lb Is Attached To The Beam The T 1
C A Beam With A Length L Is Attached To The Wall With A Cable As Shown A Load W 500 Lb Is Attached To The Beam The T 1 (171.09 KiB) Viewed 34 times

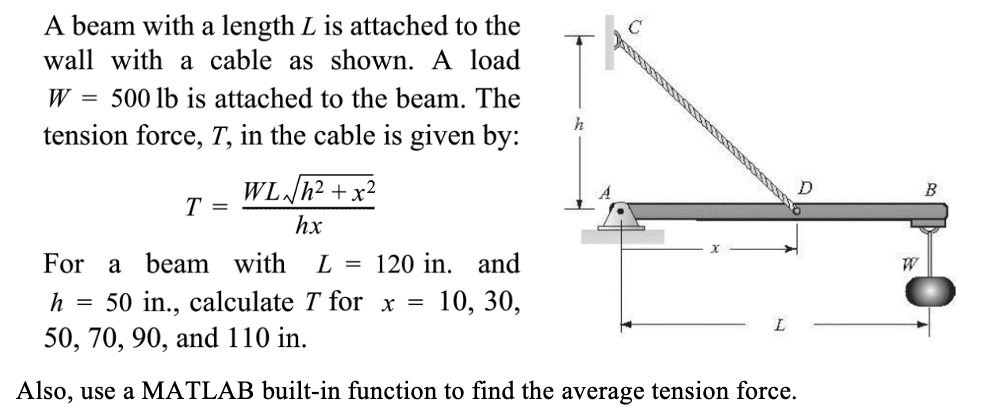

C A beam with a length L is attached to the wall with a cable as shown. A load W = 500 lb is attached to the beam. The tension force, T, in the cable is given by: WL /h2 + x2 T = h D B hx W For a beam with L = 120 in. and h = 50 in., calculate T for x = 10, 30, 50, 70, 90, and 110 in. Also, use a MATLAB built-in function to find the average tension force.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
