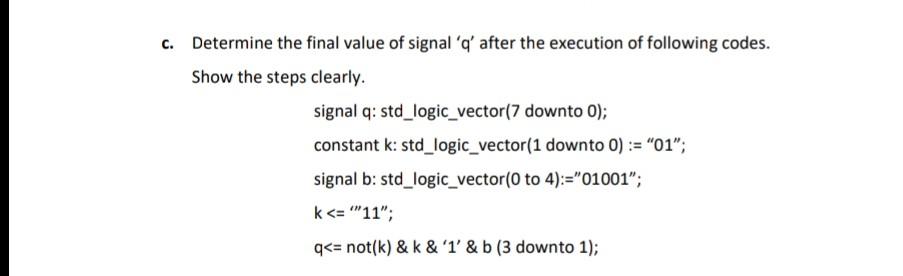

c. Determine the final value of signal 'd' after the execution of following codes. Show the steps clearly. signal q: std_logic_vector(7 downto 0); constant k: std_logic_vector(1 downto 0) := "01"; signal b: std_logic_vector(0 to 4):="01001"; k<= ""11"; q<= not(k) & k & '1' & b (3 downto 1);
