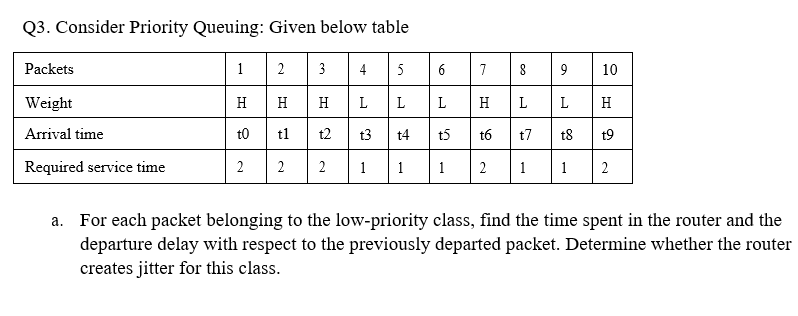

Q3. Consider Priority Queuing: Given below table Packets 1 2 3 4 5 6 7 8 9 10 H H H L L L L H L L H Weight Arrival time

[answerhappygod]

Q3 Consider Priority Queuing Given Below Table Packets 1 2 3 4 5 6 7 8 9 10 H H H L L L L H L L H Weight Arrival Time 1 (20.85 KiB) Viewed 40 times

Q3. Consider Priority Queuing: Given below table Packets 1 2 3 4 5 6 7 8 9 10 H H H L L L L H L L H Weight Arrival time to 요 t1 t2 t3 t4 t5 t6 t8 t9 Required service time 2 2 2 1 1 1 2 1 1 2 a. For each packet belonging to the low-priority class, find the time spent in the router and the departure delay with respect to the previously departed packet. Determine whether the router creates jitter for this class.
