Question 3 Consider the same RCL circuit from Q1, in series through which an input voltage, Vin(t) has be passed. The re

[answerhappygod]

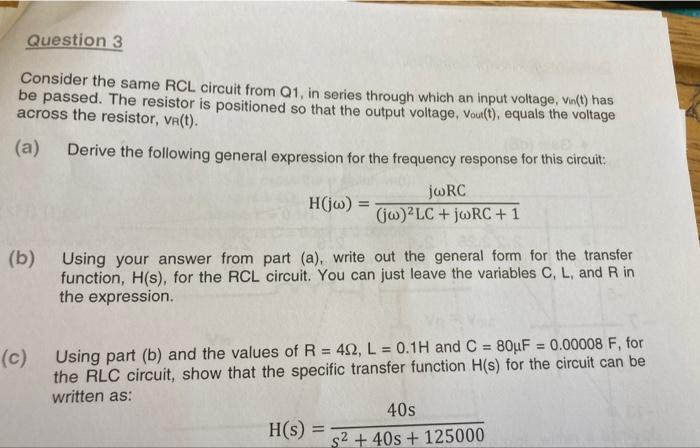

Question 3 Consider The Same Rcl Circuit From Q1 In Series Through Which An Input Voltage Vin T Has Be Passed The Re 1 (44.84 KiB) Viewed 25 times

Question 3 Consider the same RCL circuit from Q1, in series through which an input voltage, Vin(t) has be passed. The resistor is positioned so that the output voltage, Vou(t), equals the voltage across the resistor, Va(t). (a) Derive the following general expression for the frequency response for this circuit: jWRC H(0) (0) LC + WRC + 1 (b) Using your answer from part (a), write out the general form for the transfer function, H(s), for the RCL circuit. You can just leave the variables C, L, and Rin the expression E (c) Using part (b) and the values of R = 422, L = 0.1H and C = 80uF = 0.00008 F, for the RLC circuit, show that the specific transfer function H(s) for the circuit can be written as: 40s H(S) $2 + 40s + 125000
