Q8. Model the RL-circuit (Spark generation in automobile primary circuit) in the figure and solve the resulting ODE for

Post by answerhappygod »

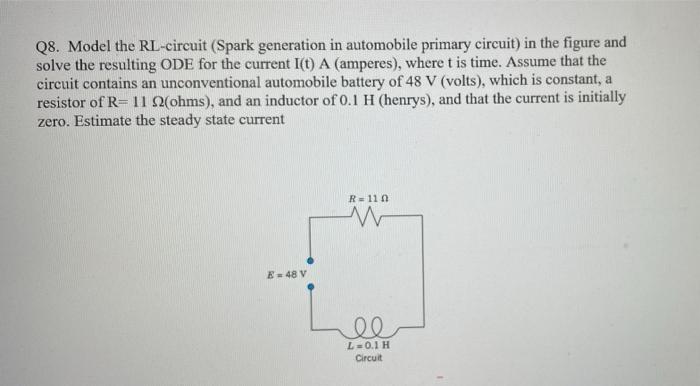

Q8 Model The Rl Circuit Spark Generation In Automobile Primary Circuit In The Figure And Solve The Resulting Ode For 1
Q8 Model The Rl Circuit Spark Generation In Automobile Primary Circuit In The Figure And Solve The Resulting Ode For 1 (29.68 KiB) Viewed 25 times
Q8. Model the RL-circuit (Spark generation in automobile primary circuit) in the figure and solve the resulting ODE for the current I(t) A (amperes), where t is time. Assume that the circuit contains an unconventional automobile battery of 48 V (volts), which is constant, a resistor of R=11 (ohms), and an inductor of 0.1 H (henrys), and that the current is initially zero. Estimate the steady state current R=110 E48 V meer L-01 H Circuit
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
