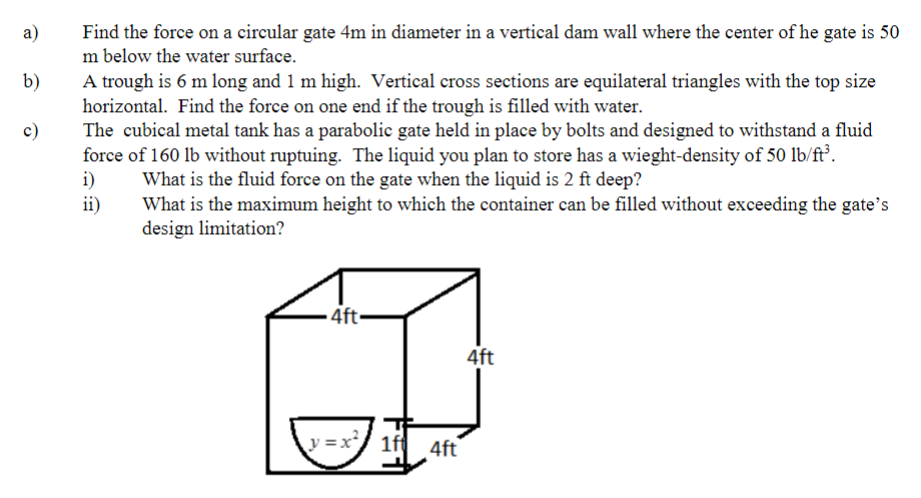

a) b) c) Find the force on a circular gate 4m in diameter in a vertical dam wall where the center of he gate is 50 m below the water surface. A trough is 6 m long and 1 m high. Vertical cross sections are equilateral triangles with the top size horizontal. Find the force on one end if the trough is filled with water. The cubical metal tank has a parabolic gate held in place by bolts and designed to withstand a fluid force of 160 lb without ruptuing. The liquid you plan to store has a wieght-density of 50 lb/ft?. i) What is the fluid force on the gate when the liquid is 2 ft deep? ii) What is the maximum height to which the container can be filled without exceeding the gate's design limitation? 4ft- 4ft y = x 1ff 4ft
