Problem 2: Figure below shows a quadratic square element used for a structural analysis problem. The left bottom corner

[answerhappygod]

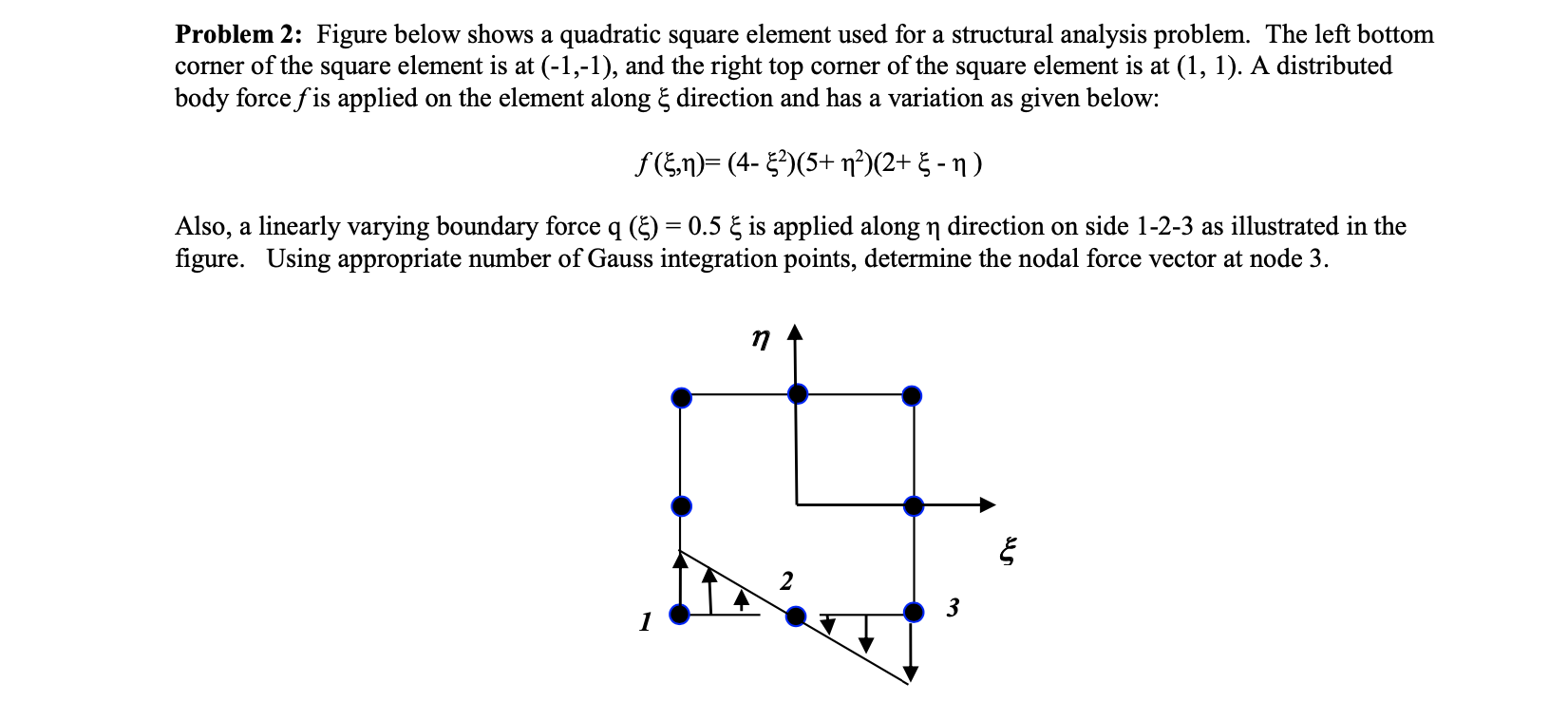

Problem 2 Figure Below Shows A Quadratic Square Element Used For A Structural Analysis Problem The Left Bottom Corner 1 (88.23 KiB) Viewed 29 times

Problem 2: Figure below shows a quadratic square element used for a structural analysis problem. The left bottom corner of the square element is at (-1,-1), and the right top corner of the square element is at (1, 1). A distributed body force fis applied on the element along & direction and has a variation as given below: a f (&,n)= (4-2)(5+ m2)(2+ &- 1) = n Also, a linearly varying boundary force q (E) = 0.5 Ę is applied along n direction on side 1-2-3 as illustrated in the figure. Using appropriate number of Gauss integration points, determine the nodal force vector at node 3. n t ६ 3
