= (5) In an LRC circuit with L = 1H, R = 81 and C = 1/15F, the capacitor initially carries a charge of 1C and no current

Post by answerhappygod »

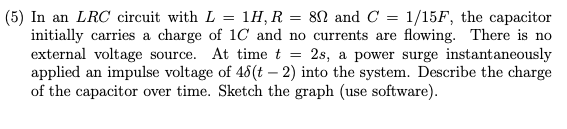

5 In An Lrc Circuit With L 1h R 81 And C 1 15f The Capacitor Initially Carries A Charge Of 1c And No Current 1
5 In An Lrc Circuit With L 1h R 81 And C 1 15f The Capacitor Initially Carries A Charge Of 1c And No Current 1 (21.43 KiB) Viewed 20 times
= (5) In an LRC circuit with L = 1H, R = 81 and C = 1/15F, the capacitor initially carries a charge of 1C and no currents are flowing. There is no external voltage source. At time t = 2s, a power surge instantaneously applied an impulse voltage of 48(t – 2) into the system. Describe the charge of the capacitor over time. Sketch the graph (use software).
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
