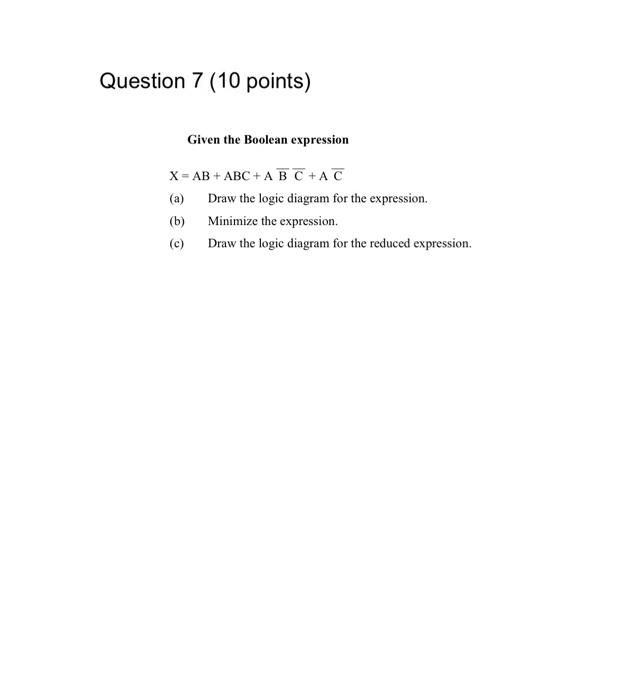

Question 7 (10 points) Given the Boolean expression X = AB + ABC + A B C +AC (a) Draw the logic diagram for the expression. (b) Minimize the expression (c) Draw the logic diagram for the reduced expression.

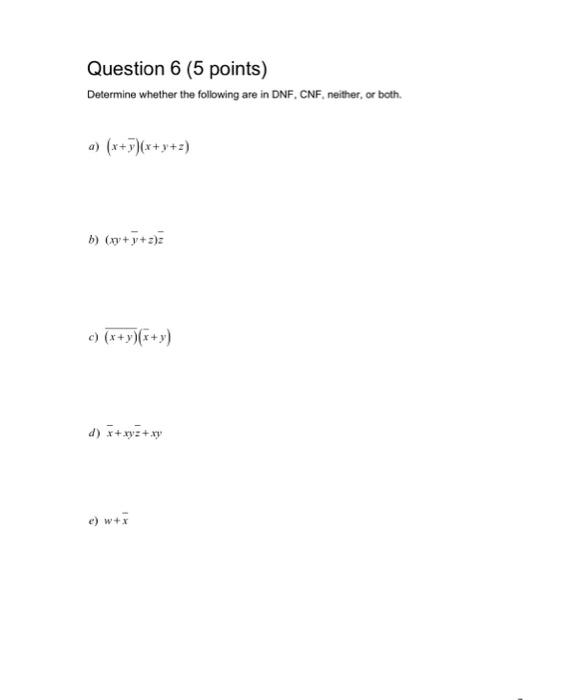

Question 6 (5 points) Determine whether the following are in DNF. CNF neither, or both. a) (x+y)(x+y+z) b) (x+y+z) c) (x+y)(x+y) d) *+xyz + x c) w+*
