I need help with part 2 which I provided and I PROVIDED THE GRAPH FOR IT. I need help with TCE 1979 which I provided. le

[answerhappygod]

I need help with part 2 which I provided and I PROVIDED THE
GRAPH FOR IT. I need help with TCE 1979 which I provided. let me
know if you need anything else will up vote thank you.

I Need Help With Part 2 Which I Provided And I Provided The Graph For It I Need Help With Tce 1979 Which I Provided Le 1 (27.73 KiB) Viewed 19 times

I Need Help With Part 2 Which I Provided And I Provided The Graph For It I Need Help With Tce 1979 Which I Provided Le 2 (21.15 KiB) Viewed 19 times

I Need Help With Part 2 Which I Provided And I Provided The Graph For It I Need Help With Tce 1979 Which I Provided Le 3 (49.75 KiB) Viewed 19 times

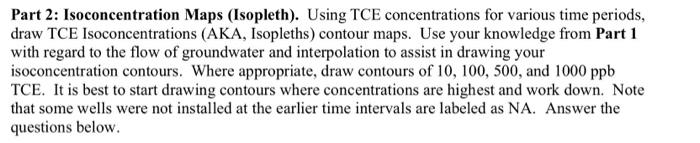

Part 2: Isoconcentration Maps (Isopleth). Using TCE concentrations for various time periods, draw TCE Isoconcentrations (AKA, Isopleths) contour maps. Use your knowledge from Part 1 with regard to the flow of groundwater and interpolation to assist in drawing your isoconcentration contours. Where appropriate, draw contours of 10, 100, 500, and 1000 ppb TCE. It is best to start drawing contours where concentrations are highest and work down. Note that some wells were not installed at the earlier time intervals are labeled as NA. Answer the questions below.

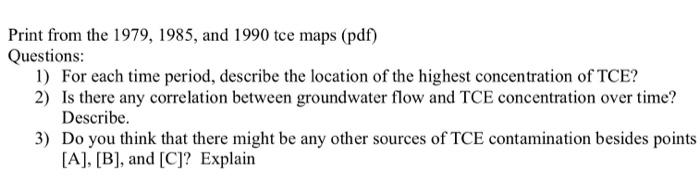

Print from the 1979, 1985, and 1990 tce maps (pdf) Questions: 1) For each time period, describe the location of the highest concentration of TCE? 2) Is there any correlation between groundwater flow and TCE concentration over time? Describe. 3) Do you think that there might be any other sources of TCE contamination besides points [A], , and [C]? Explain

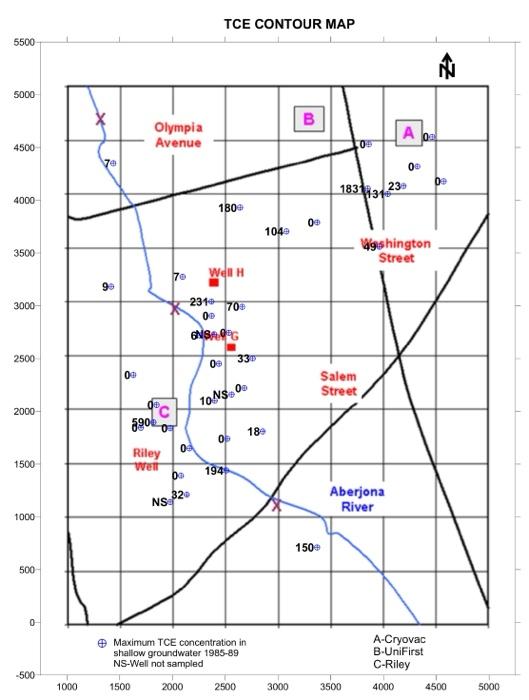

TCE CONTOUR MAP 5500 5000 B Olympia Avenue А ра! 4500 09 00 239 De 1831131 4000 180 0 1049 3500 gshington Street 70 WellH 98 3000 231 70 0 GNBAG 33 2500 0 00 0 Salem Street 10NS. 2000 590 0 18 OB 0 0 Riley Wet 1500 be 1945 NS 82 Aberjona River 1000 1500 500 0 Maximum TCE concentration in shallow groundwater 1985-89 NS-Well not sampled 1500 2000 2500 A-Cryovac B-UniFirst C-Riley -500 1000 3000 3500 4000 4500 5000
