Part A You have a resistor of resistance 250 2 , an inductor of inductance 0.360 H, a capacitor of capacitance 5.70 uF a

Post by answerhappygod »

Part A You Have A Resistor Of Resistance 250 2 An Inductor Of Inductance 0 360 H A Capacitor Of Capacitance 5 70 Uf A 1
Part A You Have A Resistor Of Resistance 250 2 An Inductor Of Inductance 0 360 H A Capacitor Of Capacitance 5 70 Uf A 1 (41.35 KiB) Viewed 18 times

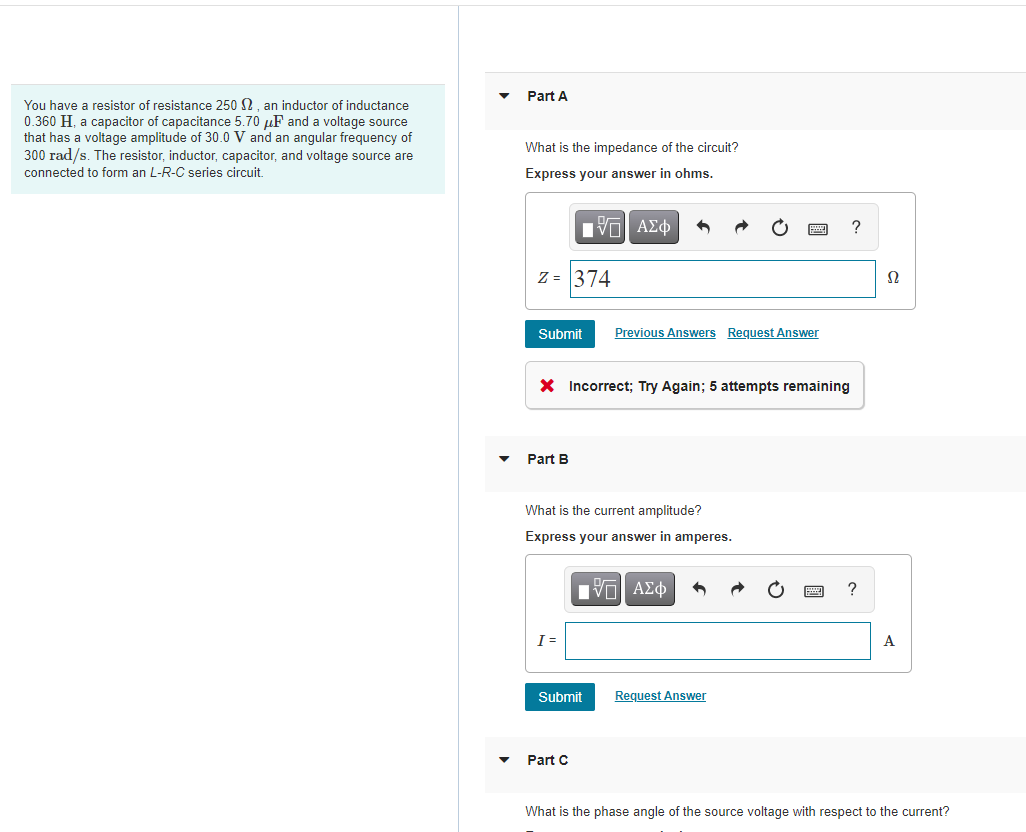

Part A You have a resistor of resistance 250 2 , an inductor of inductance 0.360 H, a capacitor of capacitance 5.70 uF and a voltage source that has a voltage amplitude of 30.0 V and an angular frequency of 300 rad/s. The resistor, inductor, capacitor, and voltage source are connected to form an L-R-C series circuit. What is the impedance of the circuit? Express your answer in ohms. IVO AXO ? Z = 374 12 Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B What is the current amplitude? Express your answer in amperes. AEO I = A Submit Request Answer Part C What is the phase angle of the source voltage with respect to the current?
