QUESTION 7 Calculate the intensity of the current in the resistor R1 of the circuit of the figure if R1-100 Ohms, R2-100

Post by **answerhappygod** » Mon May 09, 2022 6:27 pm

: Question 7 Calculate The Intensity Of The Current In The Resistor R1 Of The Circuit Of The Figure If R1 100 Ohms R2 100 1 (38.23 KiB) Viewed 17 times

: Question 7 Calculate The Intensity Of The Current In The Resistor R1 Of The Circuit Of The Figure If R1 100 Ohms R2 100 2 (38.83 KiB) Viewed 17 times

: Question 7 Calculate The Intensity Of The Current In The Resistor R1 Of The Circuit Of The Figure If R1 100 Ohms R2 100 3 (44.44 KiB) Viewed 17 times

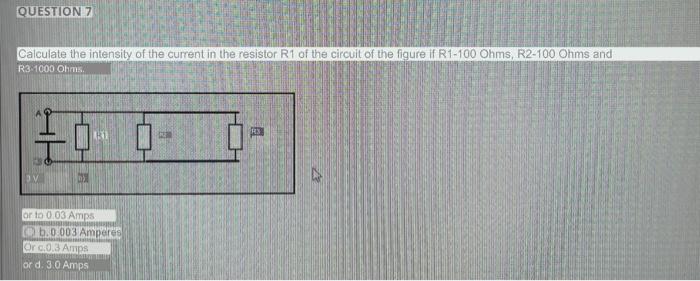

QUESTION 7 Calculate the intensity of the current in the resistor R1 of the circuit of the figure if R1-100 Ohms, R2-100 Ohms and R3 1000 Ohm B1 3 V or 1 0.03 Amps (b. 0.003 Amperes Or G.0.3 Amps or d. 30 Amps

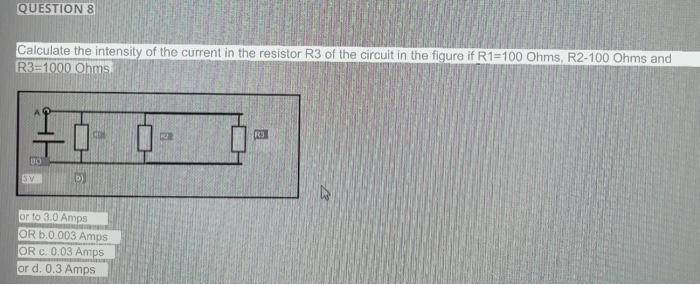

QUESTION 8 Calculate the intensity of the current in the resistor R3 of the circuit in the figure if R1=100 Ohms, R2-100 Ohms and R31000 Ohms BV or to 3.0 Amps OR 6.0.003 Amps OR C. 0.03 Amps or d. 0.3 Amps

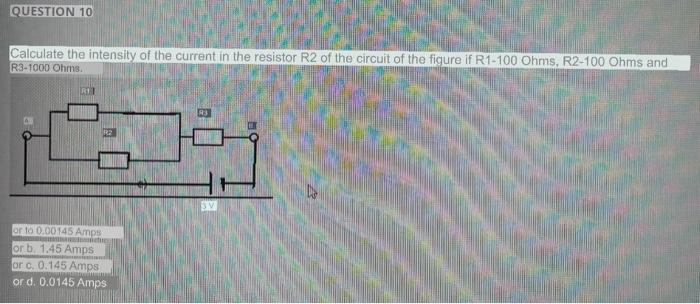

QUESTION 10 Calculate the intensity of the current in the resistor R2 of the circuit of the figure if R1-100 Ohms, R2-100 Ohms and R3-1000 Ohms R11 3 R? SM or to 0.00145 Amps orb 1.45 Amps or c. 0.145 Amps or d. 0.0145 Amps
