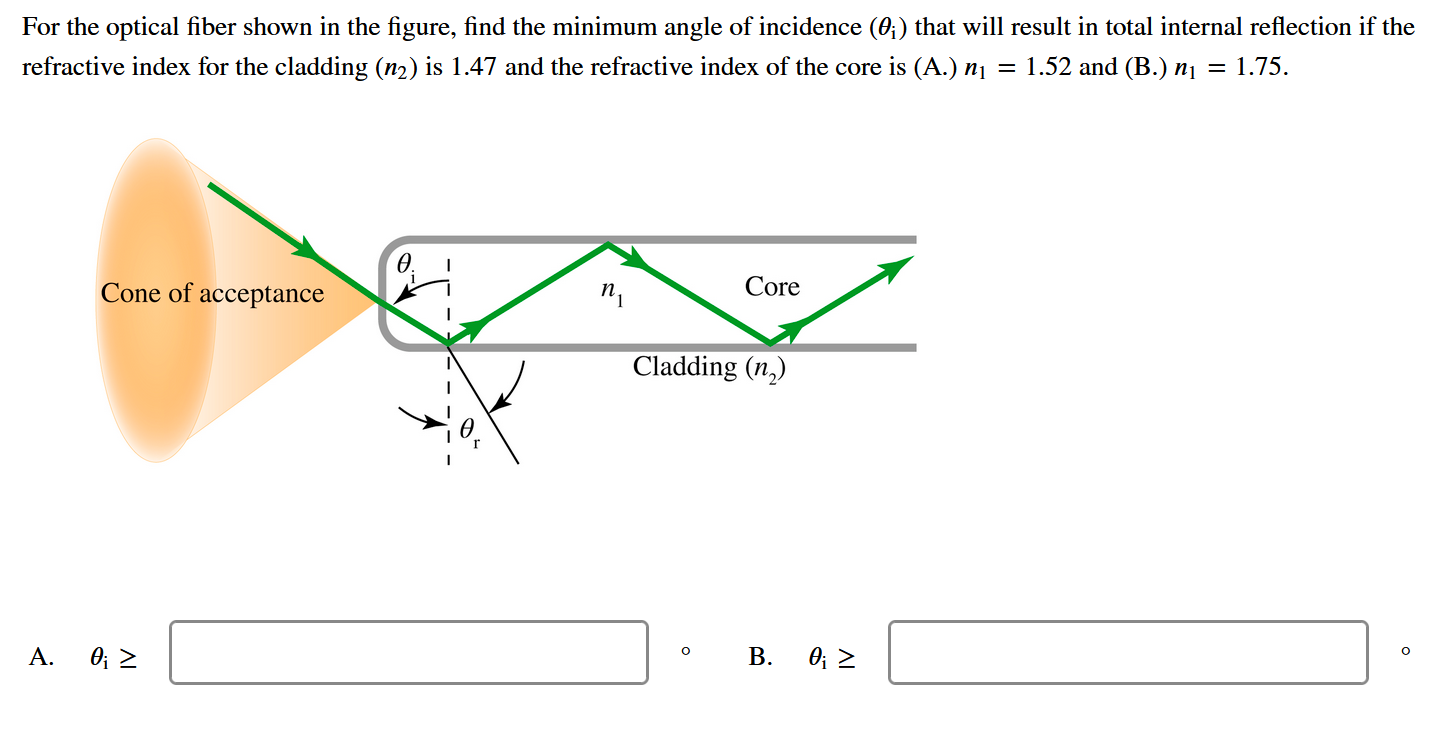

For the optical fiber shown in the figure, find the minimum angle of incidence (O;) that will result in total internal reflection if the refractive index for the cladding (n2) is 1.47 and the refractive index of the core is (A.) ni = 1.52 and (B.) ni = 1.75. Cone of acceptance Core ni Cladding (n) A. o 0; > B. 0; >
