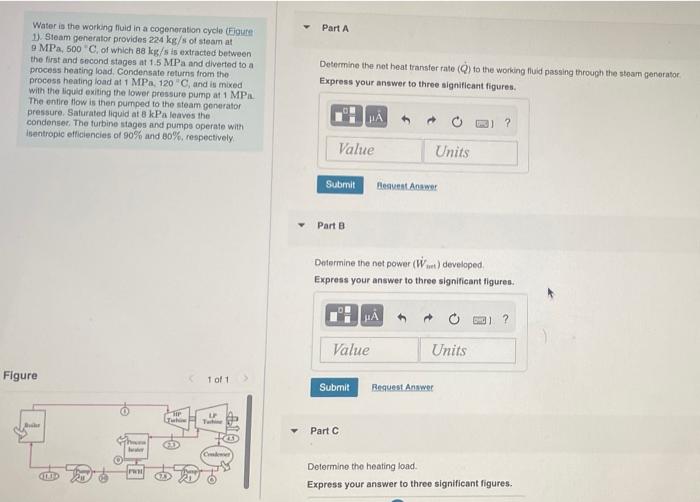

Part A Water is the working fluid in a cogeneration cycle (Eloure 1. Steam generator provides 224 kg/s of steam at 9 MPa, 500 C, of which 88 kg/s is extracted between the first and second stages at 1.5 MPa and diverted to a process heating load. Condensate returns from the process heating load at 1 MPa, 120 C, and is mixed with the liquid exiting the lower pressure pump at 1 MPA The entire tlow is then pumped to the steam generator pressure. Saturated liquid at 8 kPa leaves the condenser. The turbine stages and pumps operate with isantropic efficiencies of 90% and 80%, respectively Determine the net heat transfer rate () to the working huid passing through the steam generator Express your answer to three significant figures. HA Value Units Submit Elevest Answer Part 8 Determine the net power (W) developed Express your answer to three significant figures. НА Value Units Figure 1 of 1 Submit Request Answer TP UF ALO Part C CH Determine the heating load. Express your answer to three significant figures.

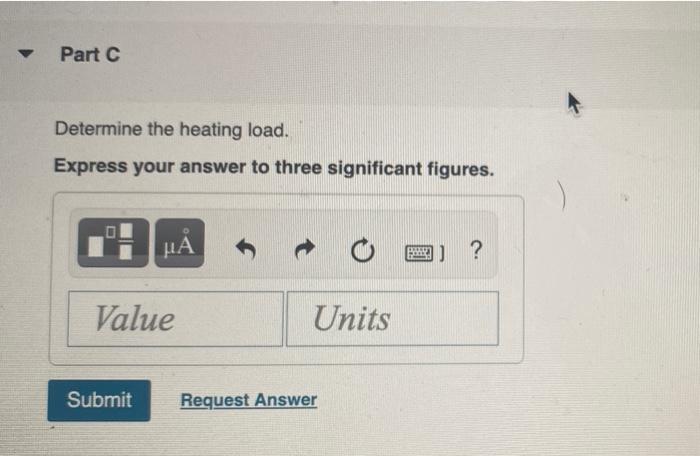

Part C Determine the heating load. Express your answer to three significant figures. μΑ 圖)? Value Units Submit Request Answer
