Consider the circuit below. Assume the internal resistance of each battery is r = 1.80 Ω. Also assume, that R1 = 12.3 Ω,

Post by answerhappygod »

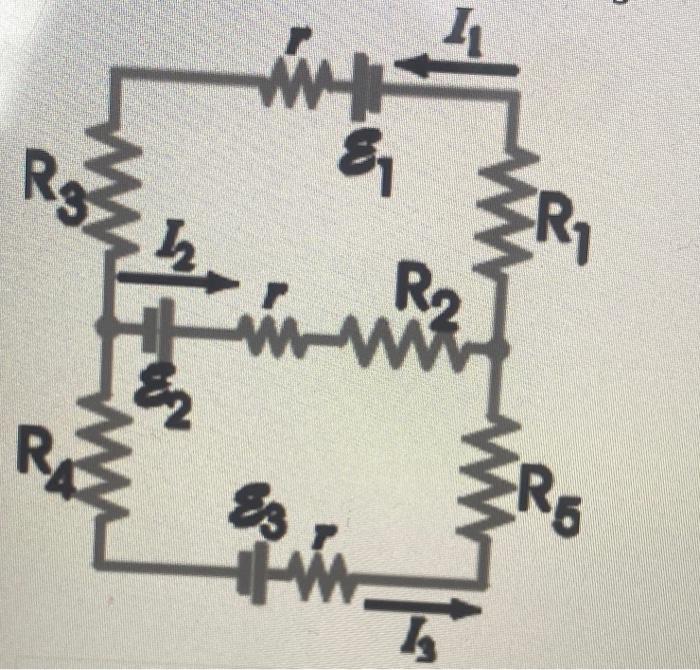

Consider the circuit below. Assume the internal resistance of each battery is r = 1.80 Ω. Also assume, that R1 = 12.3 Ω, R2 = 10.4 Ω, R3 = 7.50 Ω, R4 = 15.2 Ω, R5 = 17.2 Ω, E1 = 15.0 V, E2 = 15.0 V and E3 = 9.00 V. Calculate the current I3. Calculate the current I2. Calculate the current I1. Calculate the terminal voltage of the 9.00 V battery.
1
1 (98.89 KiB) Viewed 17 times
1 Rg & WW E2 R 8s RE
