Question 3 - Shear and Bending Moment Diagrams- (30 points) Draw the shear and bending moment diagrams for the loaded be

Post by answerhappygod »

Question 3 Shear And Bending Moment Diagrams 30 Points Draw The Shear And Bending Moment Diagrams For The Loaded Be 1
Question 3 Shear And Bending Moment Diagrams 30 Points Draw The Shear And Bending Moment Diagrams For The Loaded Be 1 (26.85 KiB) Viewed 21 times

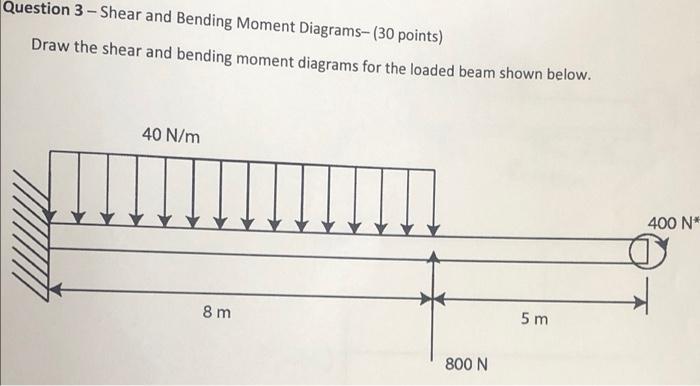

Question 3 - Shear and Bending Moment Diagrams- (30 points) Draw the shear and bending moment diagrams for the loaded beam shown below. 40 N/m 400 N* o 8 m 5 m 800 N
