Problem #4 The figure below shows a series LRC circuit with R = 100.0 2, L = 200.0 mH, and C= 300.0 uF, connected to a p

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem #4 The figure below shows a series LRC circuit with R = 100.0 2, L = 200.0 mH, and C= 300.0 uF, connected to a p

Post by answerhappygod »

Problem 4 The Figure Below Shows A Series Lrc Circuit With R 100 0 2 L 200 0 Mh And C 300 0 Uf Connected To A P 1
Problem 4 The Figure Below Shows A Series Lrc Circuit With R 100 0 2 L 200 0 Mh And C 300 0 Uf Connected To A P 1 (63.04 KiB) Viewed 21 times

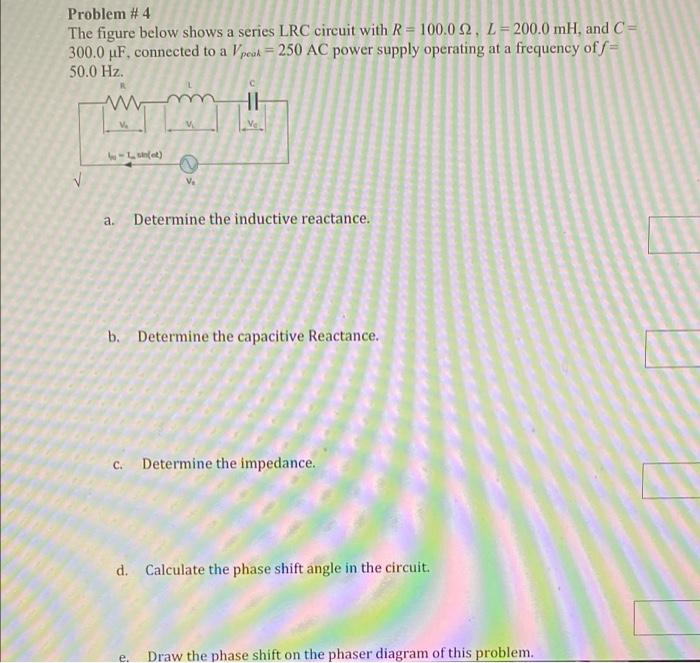

Problem #4 The figure below shows a series LRC circuit with R = 100.0 2, L = 200.0 mH, and C= 300.0 uF, connected to a peak = 250 AC power supply operating at a frequency of S= 50.0 Hz. 11 -net) V V. a. Determine the inductive reactance. b. Determine the capacitive Reactance. c. Determine the impedance. d. Calculate the phase shift angle in the circuit. e. Draw the phase shift on the phaser diagram of this problem.
