Direction. Answer the following problem. 1. A Single Motor Installation Determine: A. Conductor size B. Conduit size Cha

[answerhappygod]

Direction Answer The Following Problem 1 A Single Motor Installation Determine A Conductor Size B Conduit Size Cha 1 (60.42 KiB) Viewed 20 times

SHOP 221 Motor Controller and Sequential MOD 3

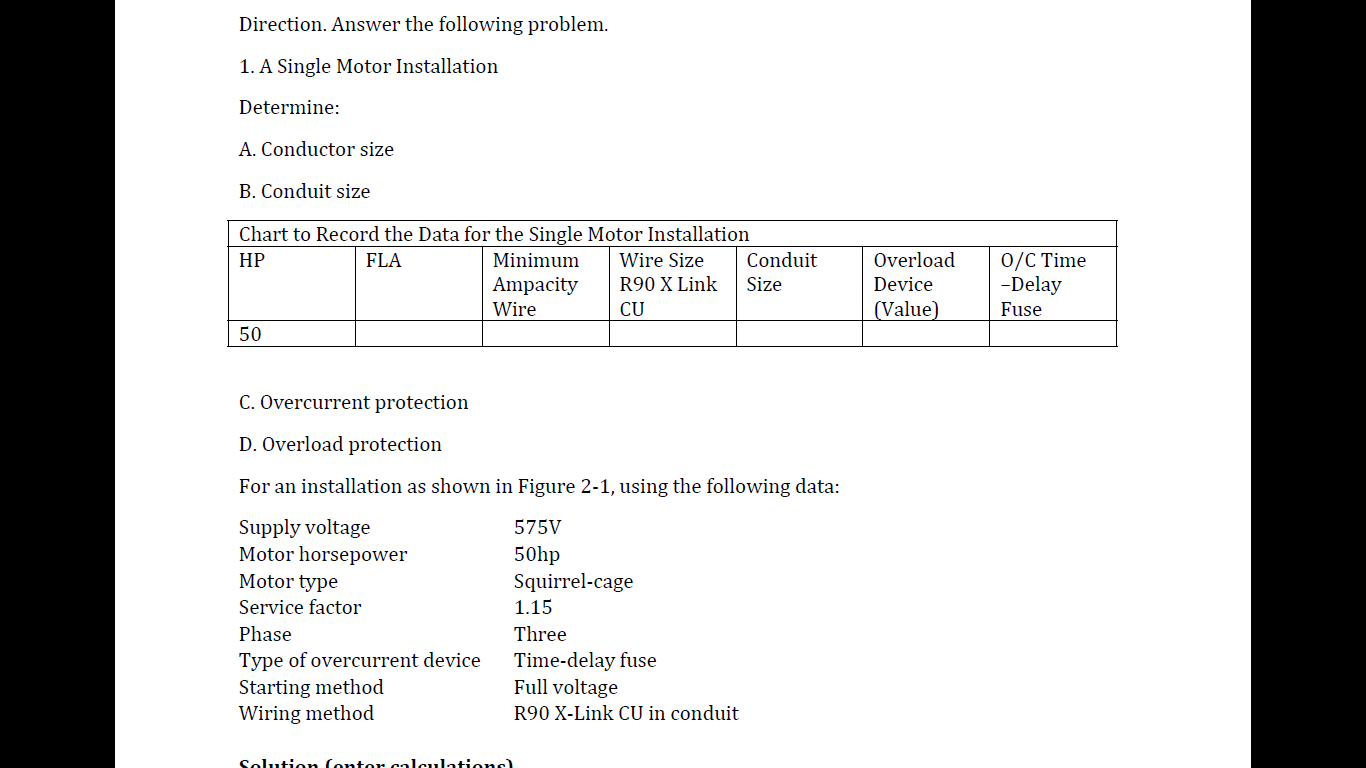

Direction. Answer the following problem. 1. A Single Motor Installation Determine: A. Conductor size B. Conduit size Chart to Record the Data for the Single Motor Installation HP FLA Minimum Wire Size Conduit Ampacity R90 X Link Size Wire CU 50 Overload Device (Value) 0/C Time -Delay Fuse C. Overcurrent protection D. Overload protection For an installation as shown in Figure 2-1, using the following data: Supply voltage Motor horsepower Motor type Service factor Phase Type of overcurrent device Starting method Wiring method 575V 50hp Squirrel-cage 1.15 Three Time-delay fuse Full voltage R90 X-Link CU in conduit Solution fontorlauktione
Service factor Phase Type of overcurrent device Starting method Wiring method 1.15 Three Time-delay fuse Full voltage R90 X-Link CU in conduit Solution (enter calculations) Step 1 Step 2 Step 3 Step 4 Step 5 Step 6
