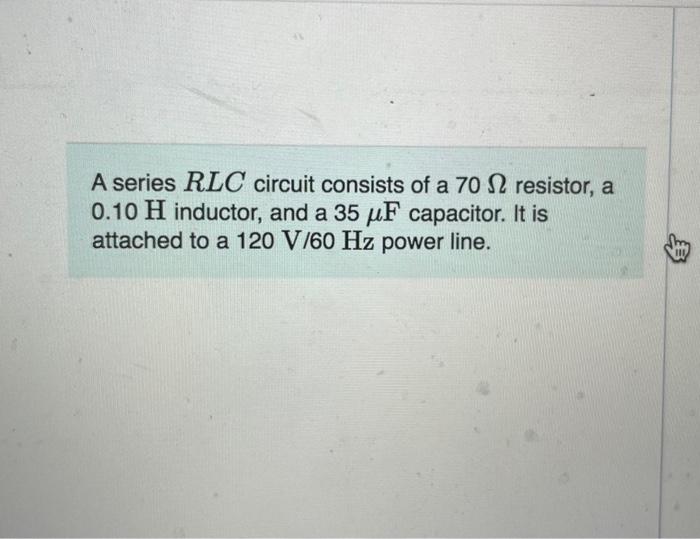

A series RLC circuit consists of a 70 12 resistor, a 0.10 H inductor, and a 35 uF capacitor. It is attached to a 120 V/60 Hz power line.

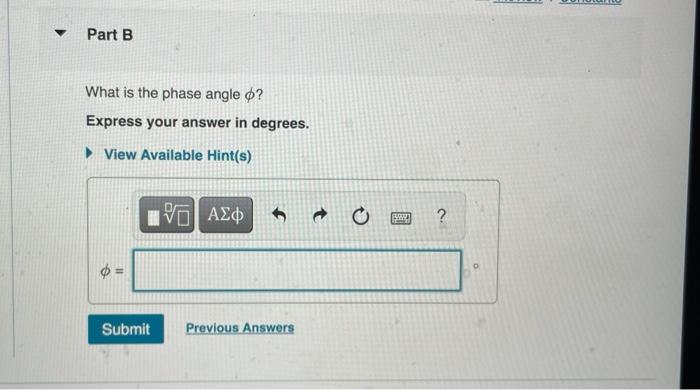

Part B What is the phase angle o? Express your answer in degrees. ► View Available Hint(s) VOA ? ф Submit Previous Answers

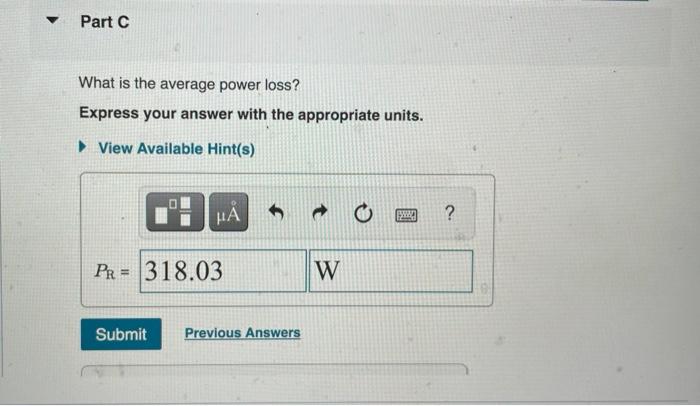

Part C What is the average power loss? Express your answer with the appropriate units. View Available Hint(s) HA ? Pr= 318.03 = W Submit Previous Answers
