Question 2 as The 2.5 Mg rear-wheel drive skid loader has a centre of mass at G. The mass of the crate m = 250 kg. The c

[answerhappygod]

Question 2 As The 2 5 Mg Rear Wheel Drive Skid Loader Has A Centre Of Mass At G The Mass Of The Crate M 250 Kg The C 1 (87.04 KiB) Viewed 26 times

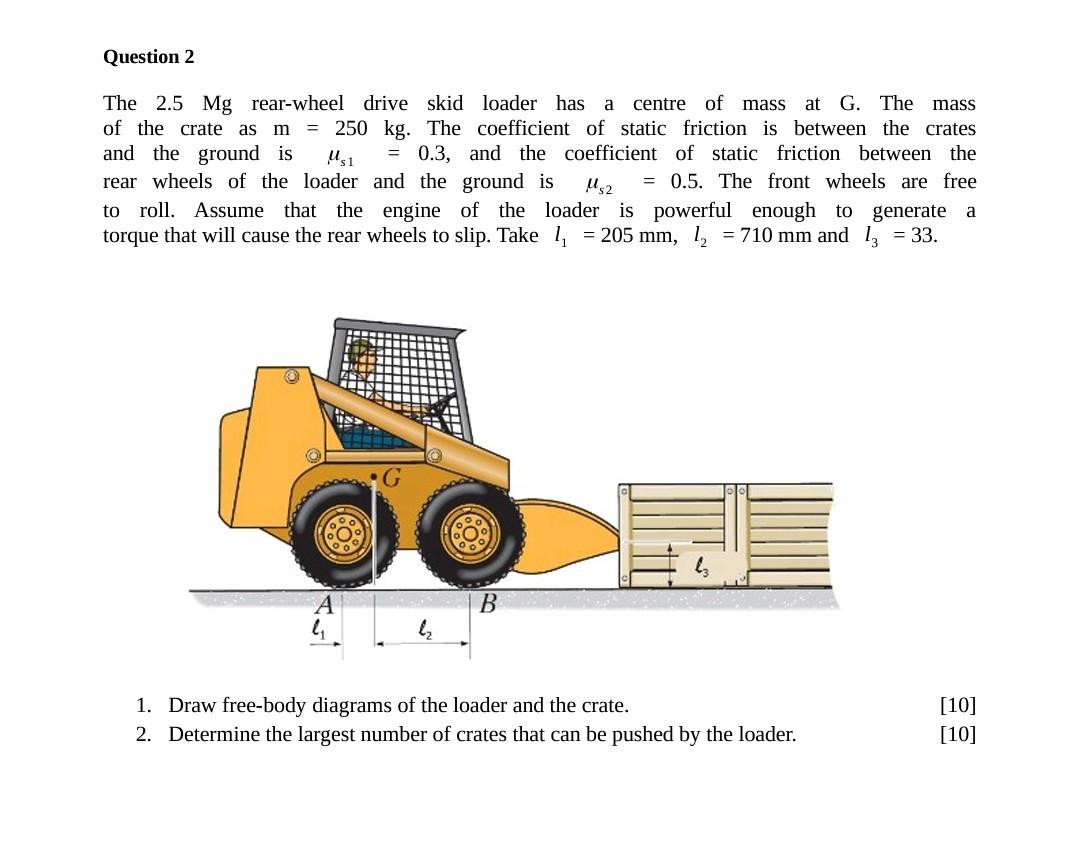

Question 2 as The 2.5 Mg rear-wheel drive skid loader has a centre of mass at G. The mass of the crate m = 250 kg. The coefficient of static friction is between the crates and the ground is Usi = 0.3, and the coefficient of static friction between the rear wheels of the loader and the ground is = 0.5. The front wheels are free to roll. Assume that the engine of the loader is powerful enough to generate a torque that will cause the rear wheels to slip. Take 1 = 205 mm, 12 = 710 mm and 13 = 33. U 2 B А 4 { 1. Draw free-body diagrams of the loader and the crate. 2. Determine the largest number of crates that can be pushed by the loader. [10] [10]
