below.
- Look At The Following Picture And Answer The Questions Below A Qualitatively Describe The Change Between The Before E 1 (46.95 KiB) Viewed 39 times
before-eruption and after-eruption topographic profile lines. What
can you tell about the eruption from the topographic profiles?
(Hint: include a description of the eruption direction and the
evidence for it and include the severity of the eruption)
B) Do you believe the volcano is still active based on the
after-eruption topographic profile? Why or why not?
C) Calculate the Mt. St. Helens topographic profile's vertical
exaggeration. Display all of your work. The vertical scale must be
measured, although the horizontal scale is provided on the
profile.
Vertical scale is?
Vertical exaggeration is?

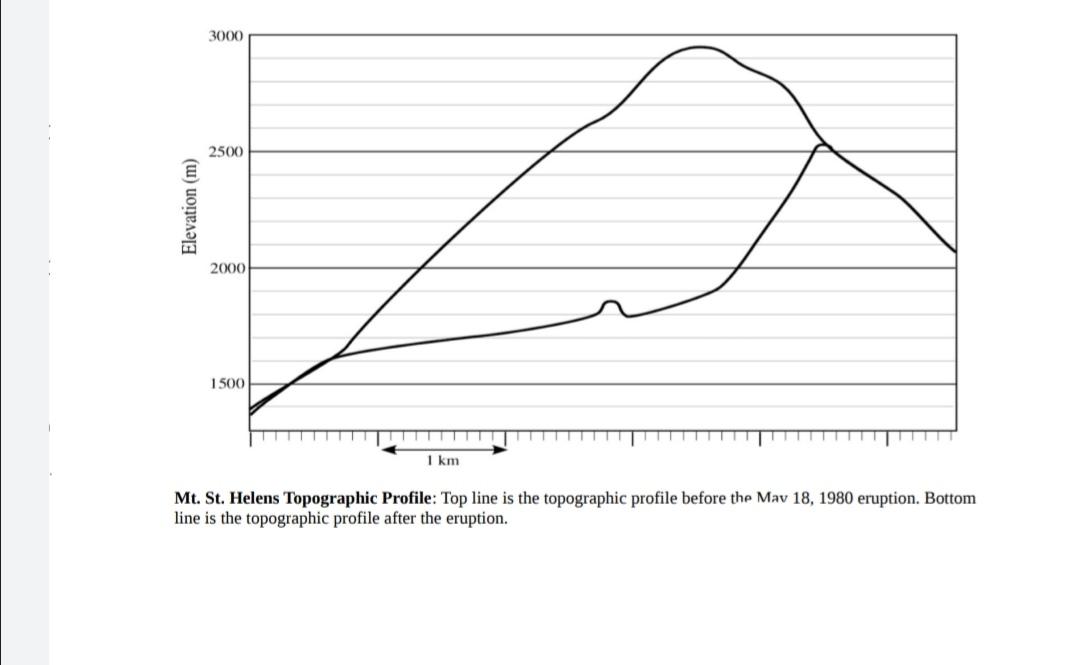

3000 2500 Elevation (m) 2000 1500 1 km Mt. St. Helens Topographic Profile: Top line is the topographic profile before the Mav 18, 1980 eruption. Bottom line is the topographic profile after the eruption.
