Question 1 (a) A horizontal beam is hinged at the end A and placed on a roller support at the end B. It is subjected to

Post by answerhappygod »

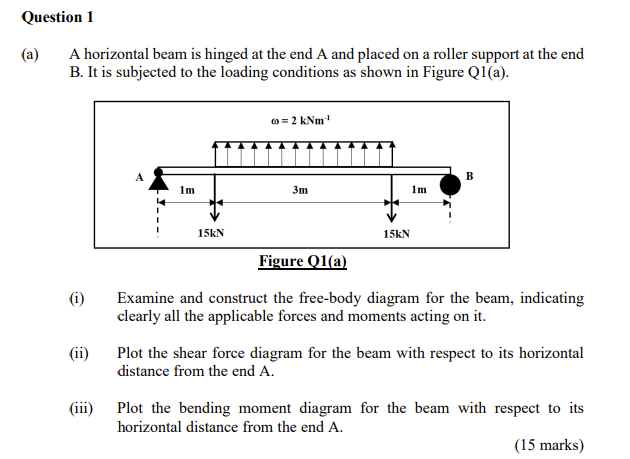

Question 1 A A Horizontal Beam Is Hinged At The End A And Placed On A Roller Support At The End B It Is Subjected To 1
Question 1 A A Horizontal Beam Is Hinged At The End A And Placed On A Roller Support At The End B It Is Subjected To 1 (65.84 KiB) Viewed 22 times
Appreciate very clear solutions with steps for my understanding.
Will upvote!!
Question 1 (a) A horizontal beam is hinged at the end A and placed on a roller support at the end B. It is subjected to the loading conditions as shown in Figure Q1(a). o= 2 kNm B 1m 3m 1m 15kN (i) ) 15kN Figure Q1(a) Examine and construct the free-body diagram for the beam, indicating clearly all the applicable forces and moments acting on it. Plot the shear force diagram for the beam with respect to its horizontal distance from the end A. (ii) (iii) Plot the bending moment diagram for the beam with respect to its horizontal distance from the end A. (15 marks)
