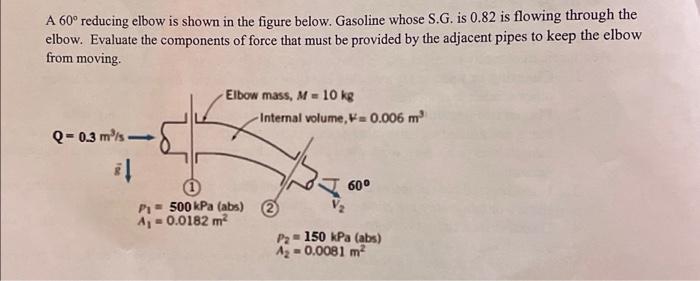

A 60° reducing elbow is shown in the figure below. Gasoline whose S.G. is 0.82 is flowing through the elbow. Evaluate the components of force that must be provided by the adjacent pipes to keep the elbow from moving. Elbow mass, M = 10 kg Internal volume, v=0.006 m Q-0.3 m/s - 600 P - 500 kPa (abs) 4,-0.0182 m2 P2 150 kPa (abs) 12 -0.0081 m2

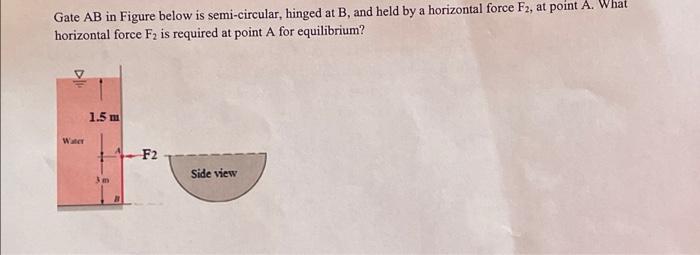

Gate AB in Figure below is semi-circular, hinged at B, and held by a horizontal force F2, at point A. What horizontal force F2 is required at point A for equilibrium? 1.5 m We F2 Side view 3 m
